Question: 3 . 2 Replace the force system acting on the beam by an equivalent force - couple system with the force acting at a .

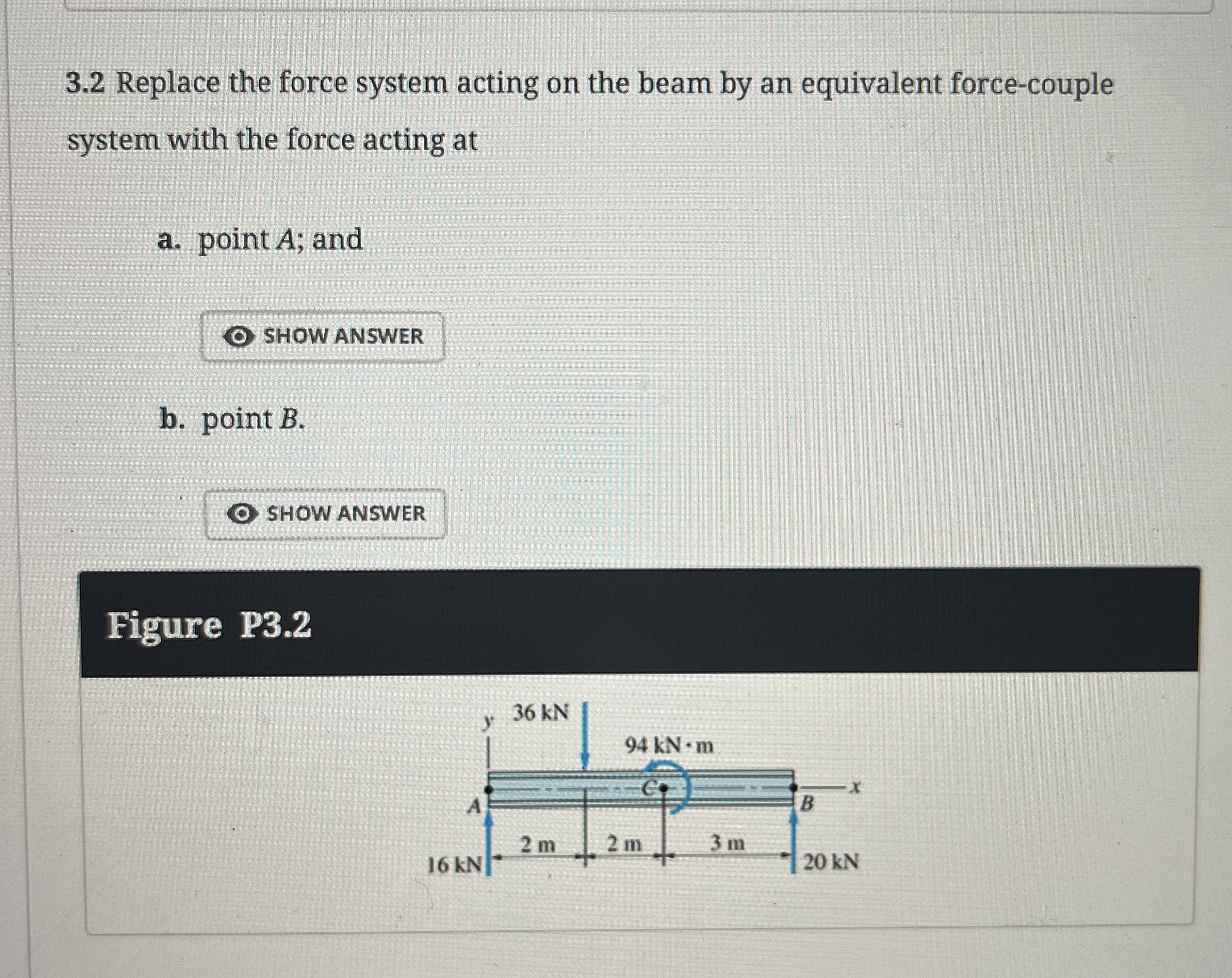

3.2 Replace the force system acting on the beam by an equivalent force-couple
system with the force acting at
a. point A; and
b. point B.
Figure P3.2
3 . 2 Replace the force system acting on the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
