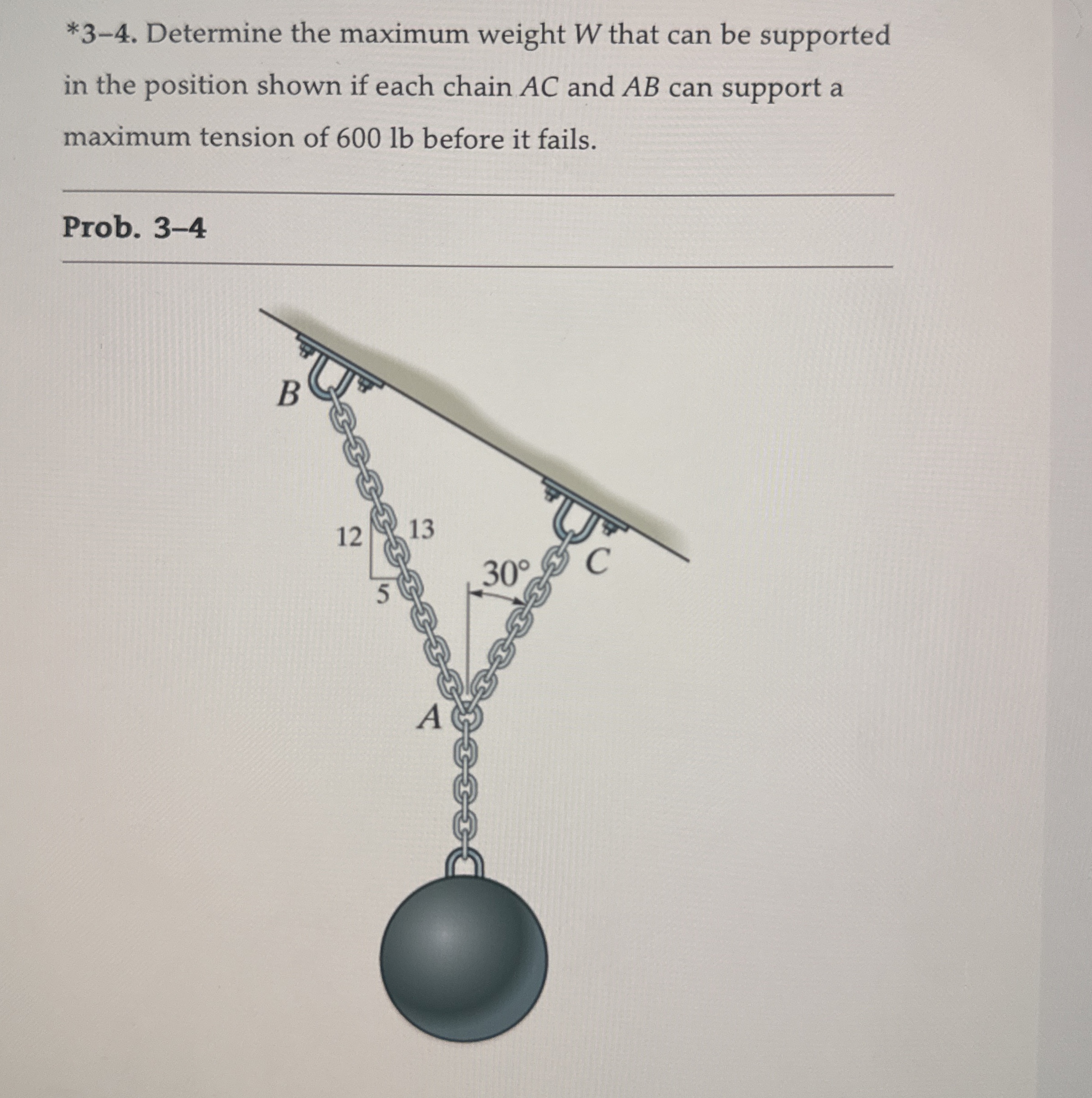

Question: * 3 - 4 . Determine the maximum weight W that can be supported in the position shown if each chain A C and A

*3-4. Determine the maximum weight W that can be supported
in the position shown if each chain AC and AB can support a
maximum tension of 600 lb before it fails.
Prob. 3-4
* 3 - 4 . Determine the maximum weight W that can

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
