Question: 3 - 5 . Determine the force in each member of the truss. State if the members are in tension or compression. Assume all members

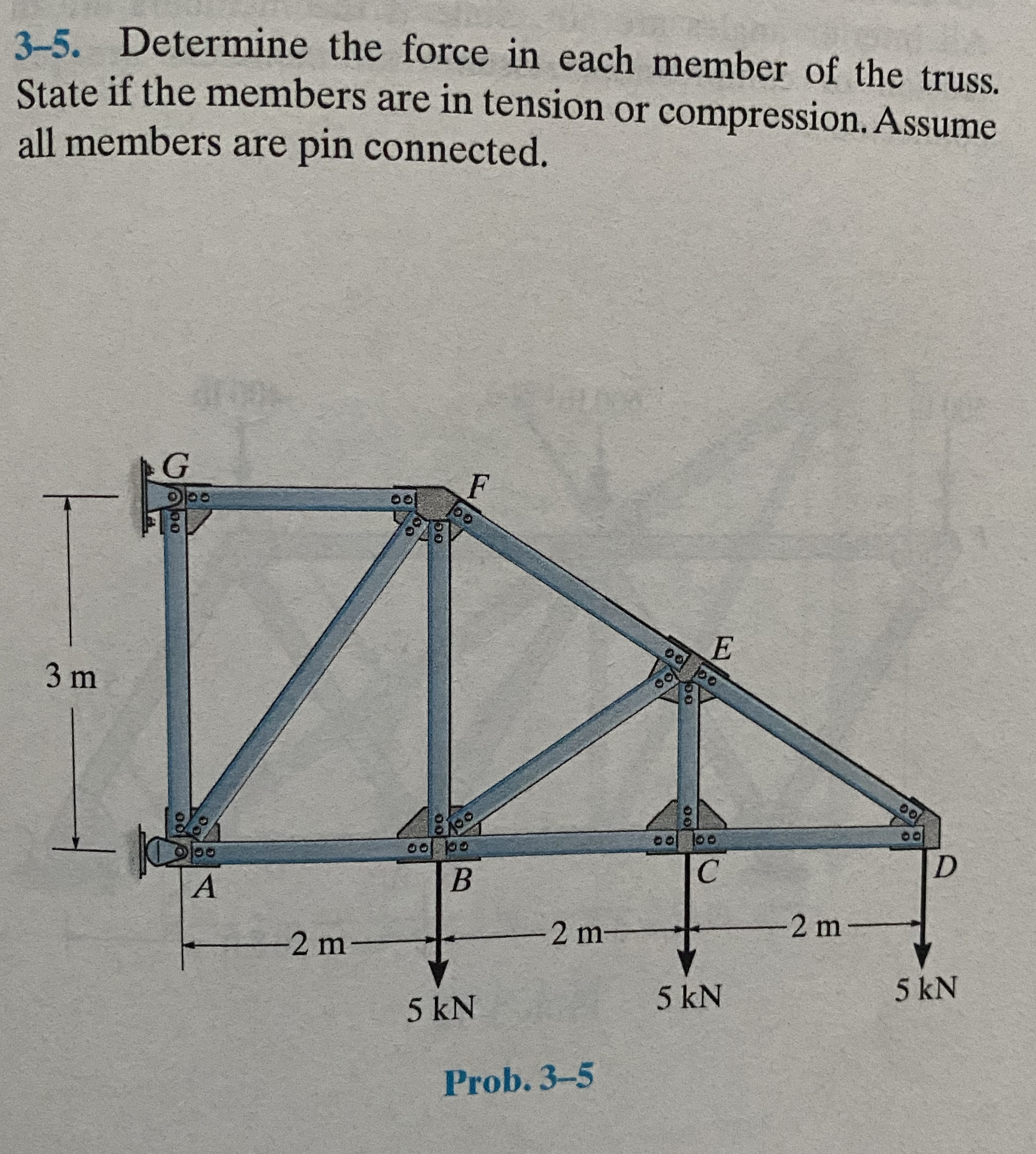

3-5. Determine the force in each member of the truss.
State if the members are in tension or compression. Assume
all members are pin connected.
Prob. 3-5
3 - 5 . Determine the force in each member of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
