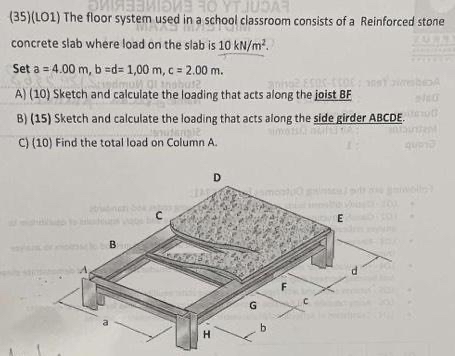

$(35)($LO$1)$ The floor system used in a school classroom consists of a Reinforced stone concrete slab where load on the slab is $10k\frac{N}{m^2}.$

Set $a=4\mathrm{.}00m,b=d=1,00m,c=2\mathrm{.}00m.$

A$)(10)$ Sketch and calculate the loading that acts along the joist $8F$

B$)(15)$ Sketch and calculate the loading that acts along the side girder ABCDE.

C$)(10)$ Find the total load on Column A$.$
