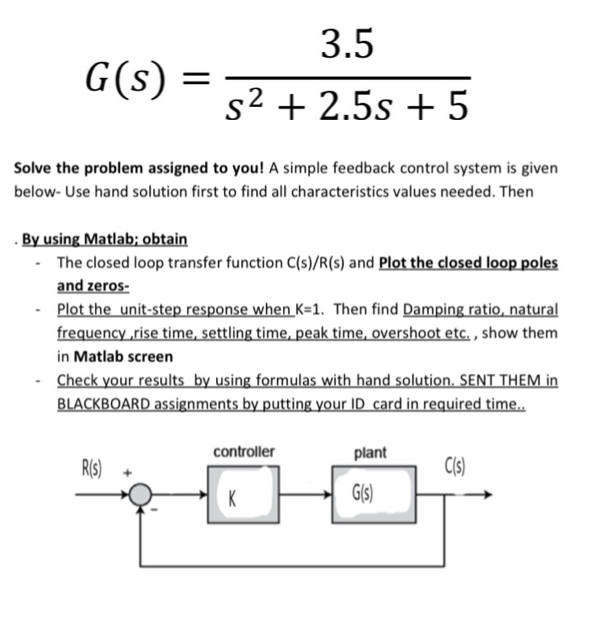

$3\mathrm{.}5$

Solve the problem assigned to you! A simple feedback control system is given below$-$ Use hand solution first to find all characteristics values needed. Then

By using Matlab; obtain

The closed loop transfer function $C\frac{s}{R}(s)$ and Plot the closed loop poles and zeros$-$

Plot the unit$-$step response when $K=1.$ Then find Damping ratio, natural frequency, rise time, settling time, peak time, overshoot etc., show them in Matlab screen

Check your results by using formulas with hand solution. SENT THEM in BLACKBOARD assignments by putting your ID card in required time..
