Question: * 3 - 6 4 . If cable A D is tightened by a turnbuckle and develops a tension of 1 3 0 0 lb

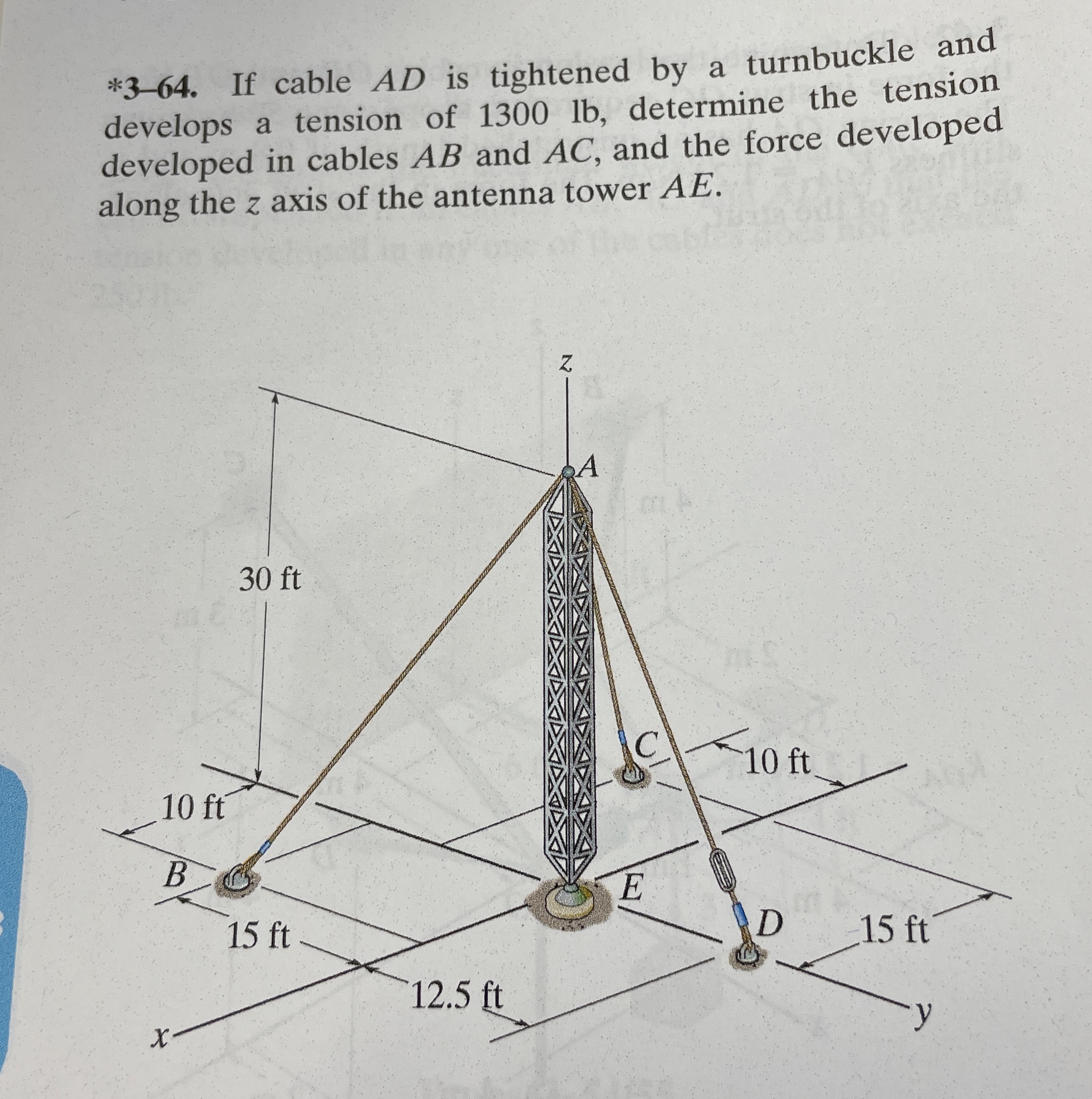

*3-64. If cable AD is tightened by a turnbuckle and
develops a tension of 1300 lb , determine the tension
developed in cables AB and AC, and the force developed
along the z axis of the antenna tower AE.
* 3 - 6 4 . If cable A D is tightened by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
