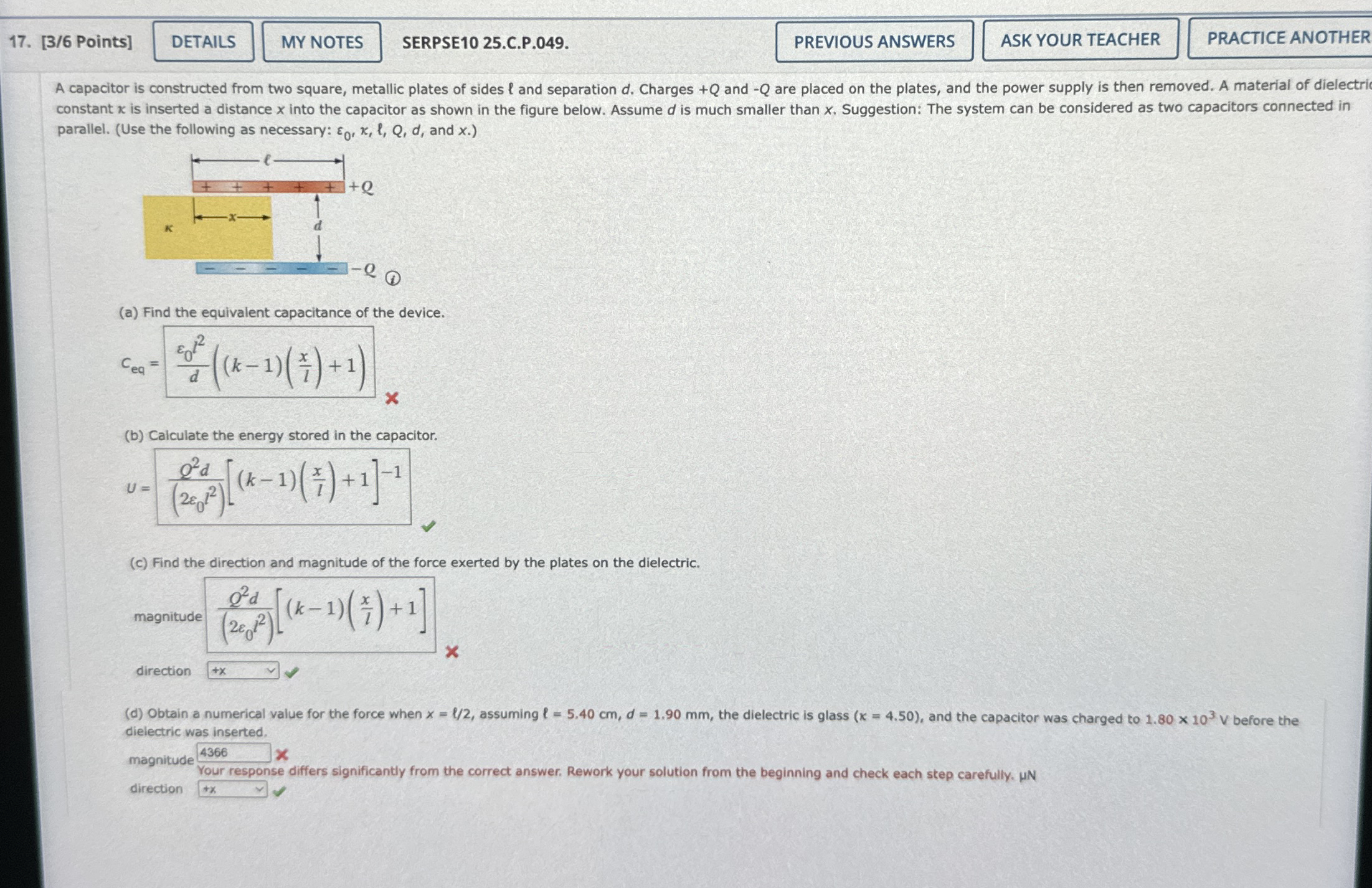

$[3/6$ Points$]$

SERPSE$1025.$C$.$P$\mathrm{.}049.$

PRACTICE ANOTHER

A capacitor is constructed from two square, metallic plates of sides $l$ and separation $d.$ Charges $+Q$ and $-Q$ are placed on the plates, and the power supply is then removed. A material of dielectric constant $x$ is inserted a distance $x$ into the capacitor as shown in the figure below. Assume $d$ is much smaller than $x.$ Suggestion: The system can be considered as two capacitors connected in parallel. $($Use the following as necessary: ${}_0,x,l,Q,d,$ and $x.)$

$($a$)$ Find the equivalent capacitance of the device.

$C_{eq}$

$($b$)$ Calculate the energy stored in the capacitor.

$u=$

$($c$)$ Find the direction and magnitude of the force exerted by the plates on the dielectric.

$($d$)$ Obtain a numerical value for the force when $x=\frac{l}{2},$ assuming $l=5\mathrm{.}40cm,d=1\mathrm{.}90mm,$ the dielectric is glass $(x=4\mathrm{.}50),$ and the capacitor was charged to $1\mathrm{.}80{10}^{3}V$ before the dielectric was inserted.

magnitude

Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully, $N$

direction
