Question: 3 , 7 3 Determine the flowrate through the Venturi meter shown in Fig. P 3 . 7 3 if ideal conditions exist.

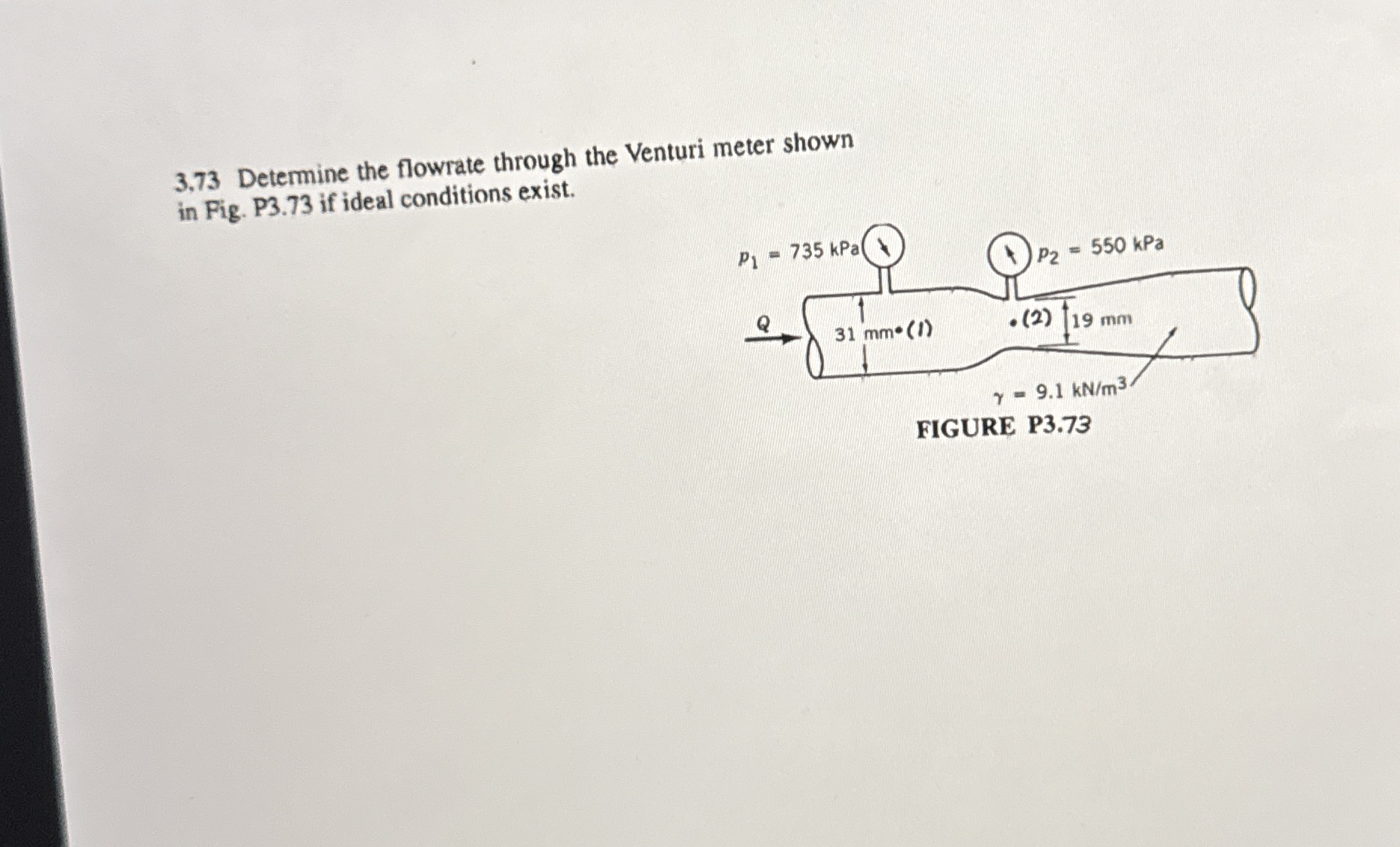

3,73 Determine the flowrate through the Venturi meter shown in Fig. P3.73 if ideal conditions exist.
3 , 7 3 Determine the flowrate through the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
