Question: * 3 - 9 6 . Replace the loading acting on the post by a resultant force, and spedify where its line of action intersects

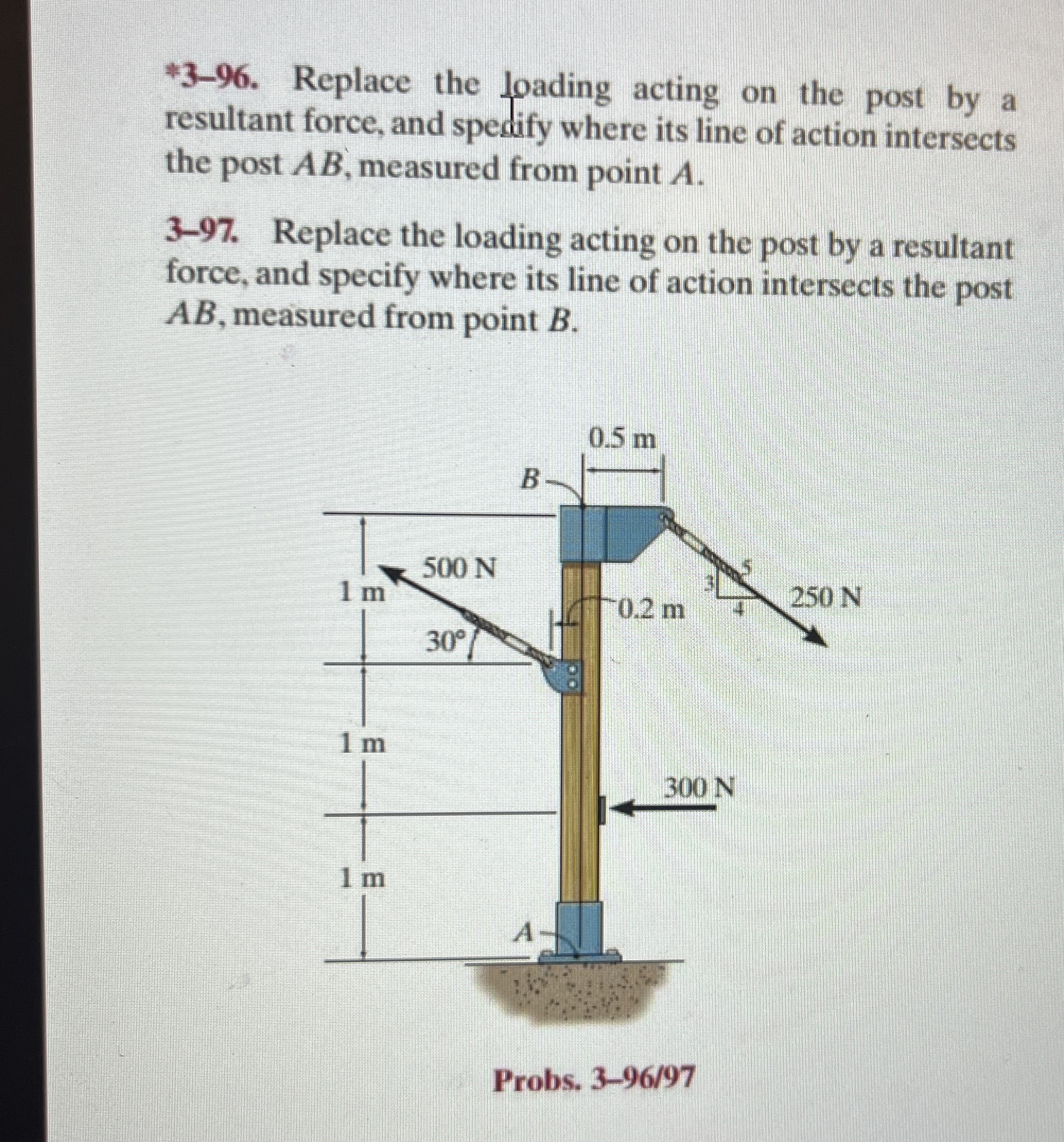

*3-96. Replace the loading acting on the post by a
resultant force, and spedify where its line of action intersects
the post AB, measured from point A.
3-97. Replace the loading acting on the post by a resultant
force, and specify where its line of action intersects the post
AB, measured from point B.
Probs. 3-96/97
* 3 - 9 6 . Replace the loading acting on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force system acting on the post by a resultant force, and specify where its line of action intersects the post AB measured from pointA. 0.5 m B. 500 N 1m 250 N 0.2 m 30 1m 300 N 1m
