Question: 3 - 9 9 . Replace the loading acting on the frame by an equivaient resultant force and specify where the resuliant's line of action

3-99.

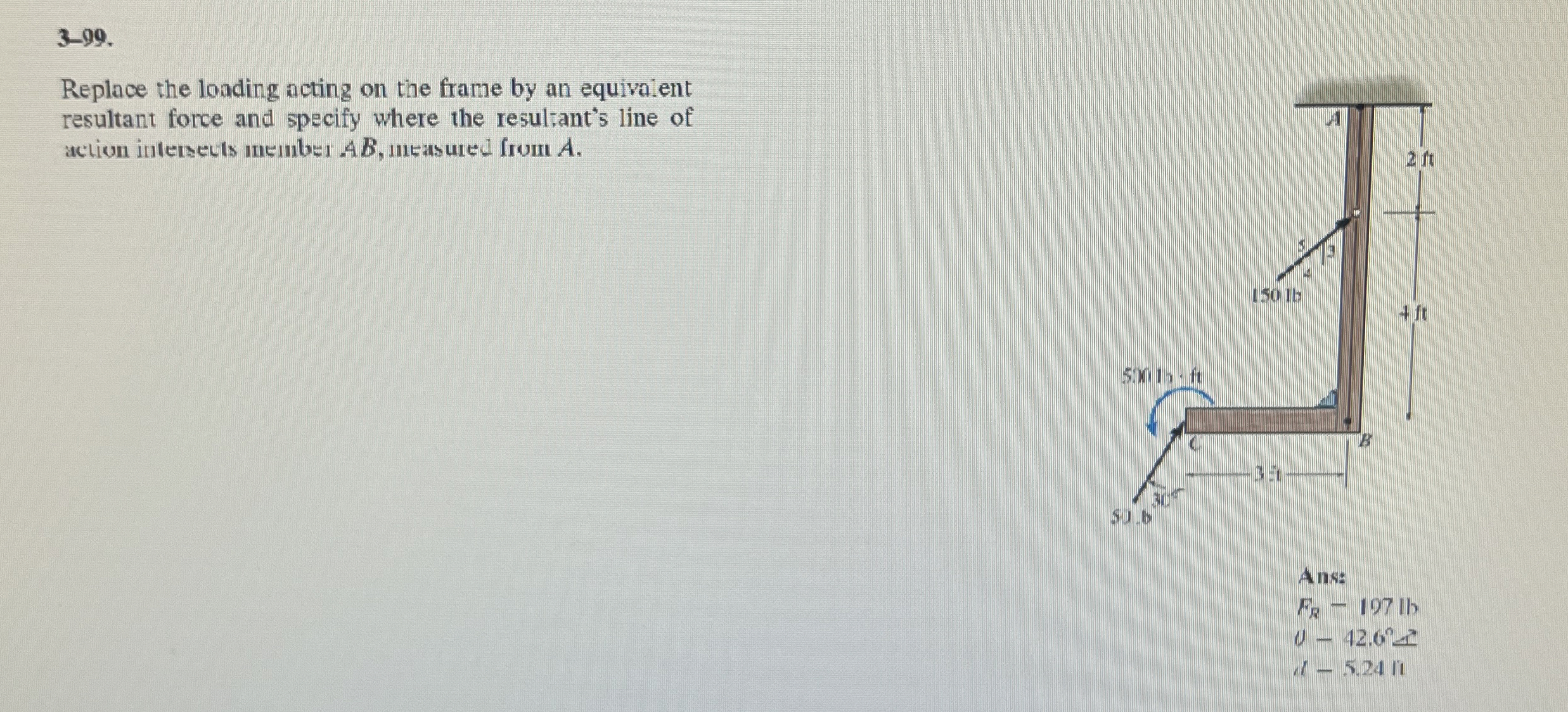

Replace the loading acting on the frame by an equivaient
resultant force and specify where the resuliant's line of
action intersects member AB, measued from A.
Ans:
FR-197lb
d-42.6I2
d-5.24it
3 - 9 9 . Replace the loading acting on the frame

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
