Question: 3 . A welded lap splice connection is shown, please Determine the weld lengths, ( mathrm { L } _ { 1 }

3 .

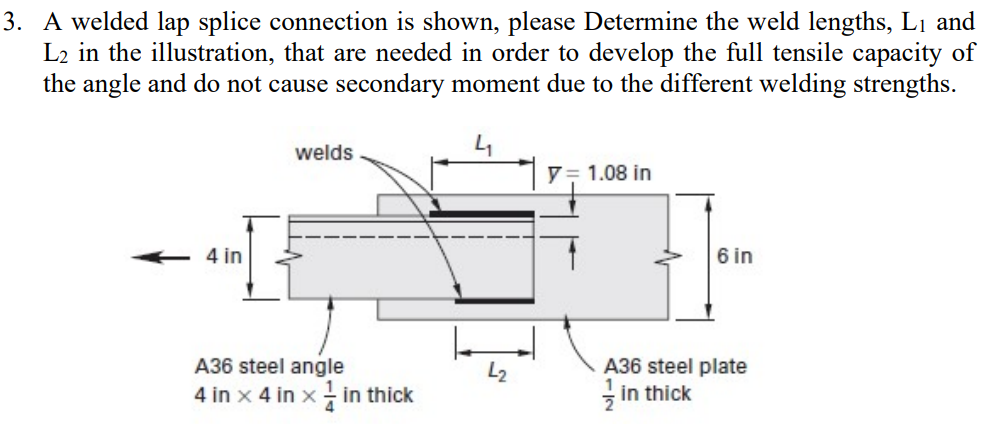

A welded lap splice connection is shown, please Determine the weld lengths,

\ (\

mathrm

{

}_{1} \)

and

\ (\

mathrm

{

}_{2} \)

in the illustration, that are needed in order to develop the full tensile capacity of the angle and do not cause secondary moment due to the different welding strengths.

3 . A welded lap splice connection is shown,

Step by Step Solution

There are 3 Steps involved in it
