Question: 3. By using the Virtual Work principle; determine the vertical displacement of joint D on the truss. Each A-36 steel member has a cross-sectional

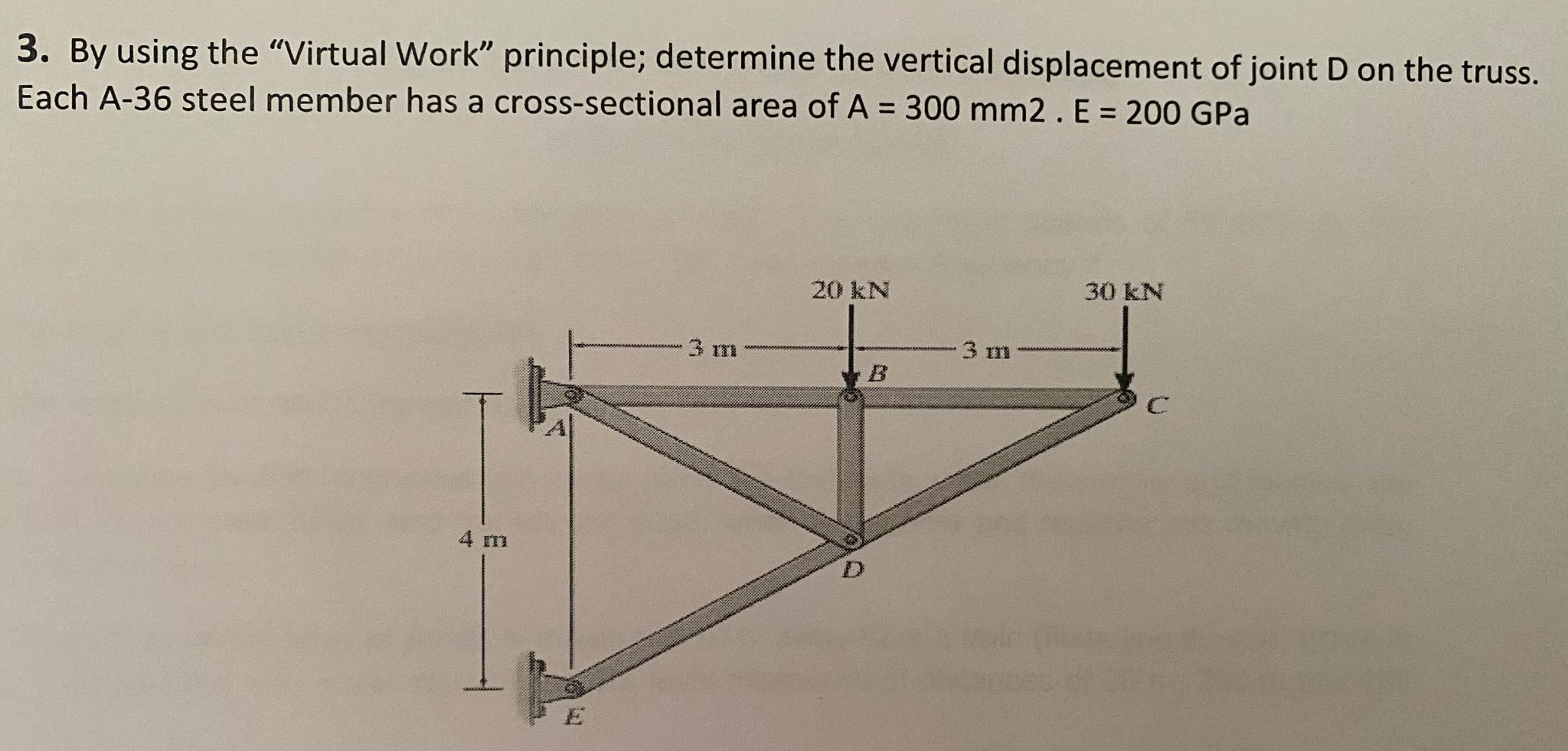

3. By using the "Virtual Work" principle; determine the vertical displacement of joint D on the truss. Each A-36 steel member has a cross-sectional area of A = 300 mm2. E = 200 GPa 3 m 20 kN 4 m D E 3 m B 30 kN

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
