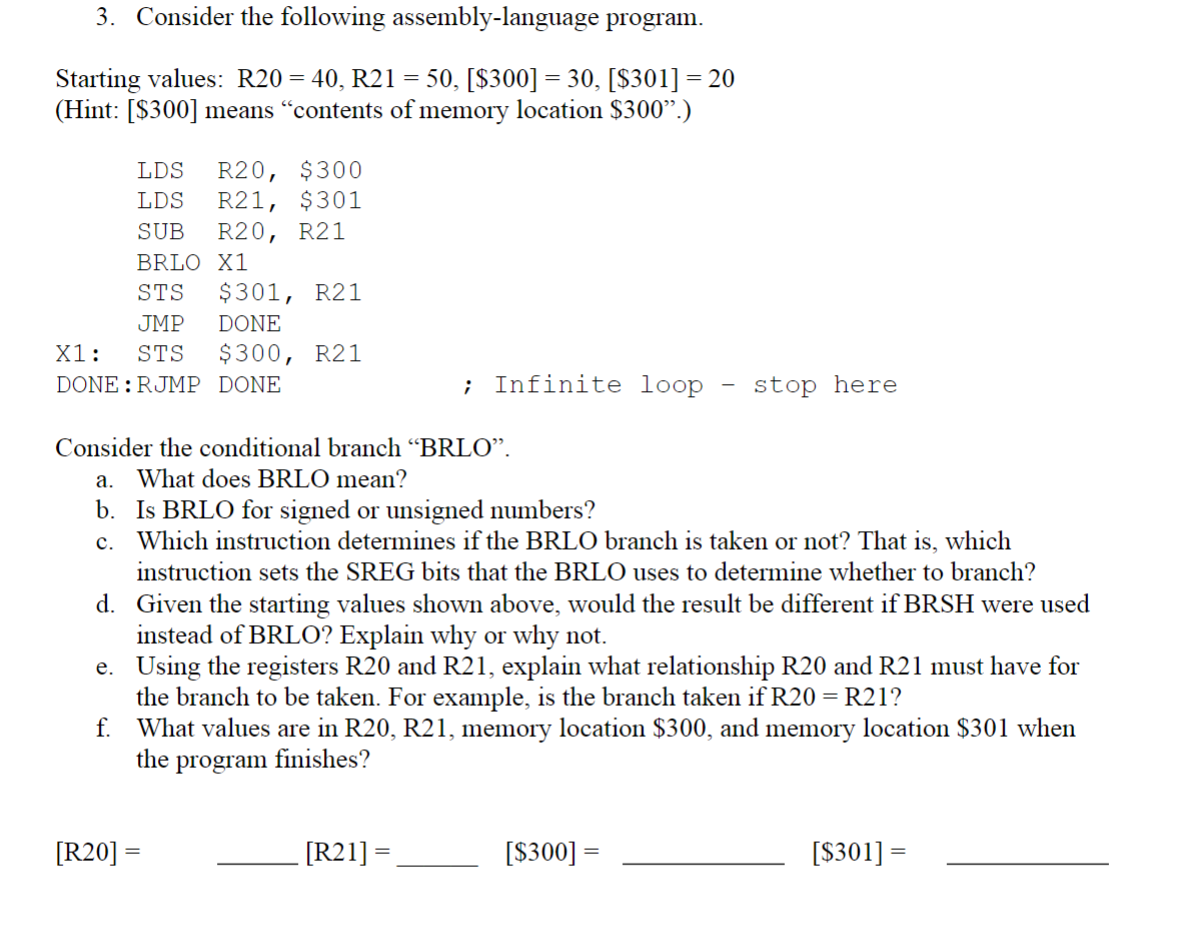

$3.$ Consider the following assembly$-$language program.

Starting values: $\backslash (\backslash$mathrm$\{$R$\}20=40,\backslash$mathrm$\{$R$\}21=50,[\backslash$$ $300]=30,[\backslash$$ $301]=20\backslash )$

$($Hint: $[\backslash$$$300]$ means "contents of memory location $\backslash$$$300".)$

$```$

LDS R$20,$ $$300$

LDS R$21,$ $$301$

SUB R$20,$ R$21$

BRLO X$1$

STS $$301,$ R$21$

JMP DONE

X$1$: STS $$300,$ R$21$

DONE:RJMP DONE ; Infinite loop $-$ stop here

$```$

Consider the conditional branch "BRLO".

a$.$ What does BRLO mean?

b$.$ Is BRLO for signed or unsigned numbers?

c$.$ Which instruction determines if the BRLO branch is taken or not? That is$,$ which instruction sets the SREG bits that the BRLO uses to determine whether to branch?

d$.$ Given the starting values shown above, would the result be different if BRSH were used instead of BRLO? Explain why or why not.

e$.$ Using the registers R$20$ and R$21,$ explain what relationship R$20$ and R$21$ must have for the branch to be taken. For example, is the branch taken if R$20=$ R$21?$

f$.$ What values are in R$20,$ R$21,$ memory location $\backslash (\backslash$$ $300\backslash ),$ and memory location $\backslash (\backslash$$ $301\backslash )$ when the program finishes?
