Question: ( 3 ) Consider the system shown below. Find the equivalent mass Find the equivalent stiffness Find natural frequency of the system.

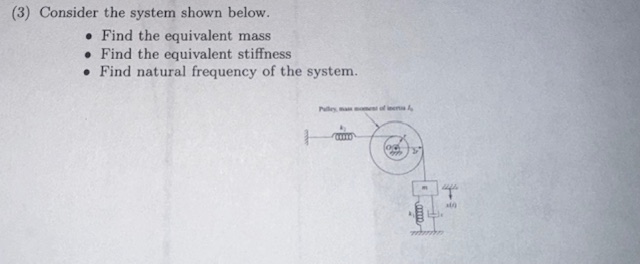

(3) Consider the system shown below.
Find the equivalent mass
Find the equivalent stiffness
Find natural frequency of the system.
( 3 ) Consider the system shown below. Find the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
