Question: 3 ) Determine the force in members ( C D , C J , K J ) , and ( D J

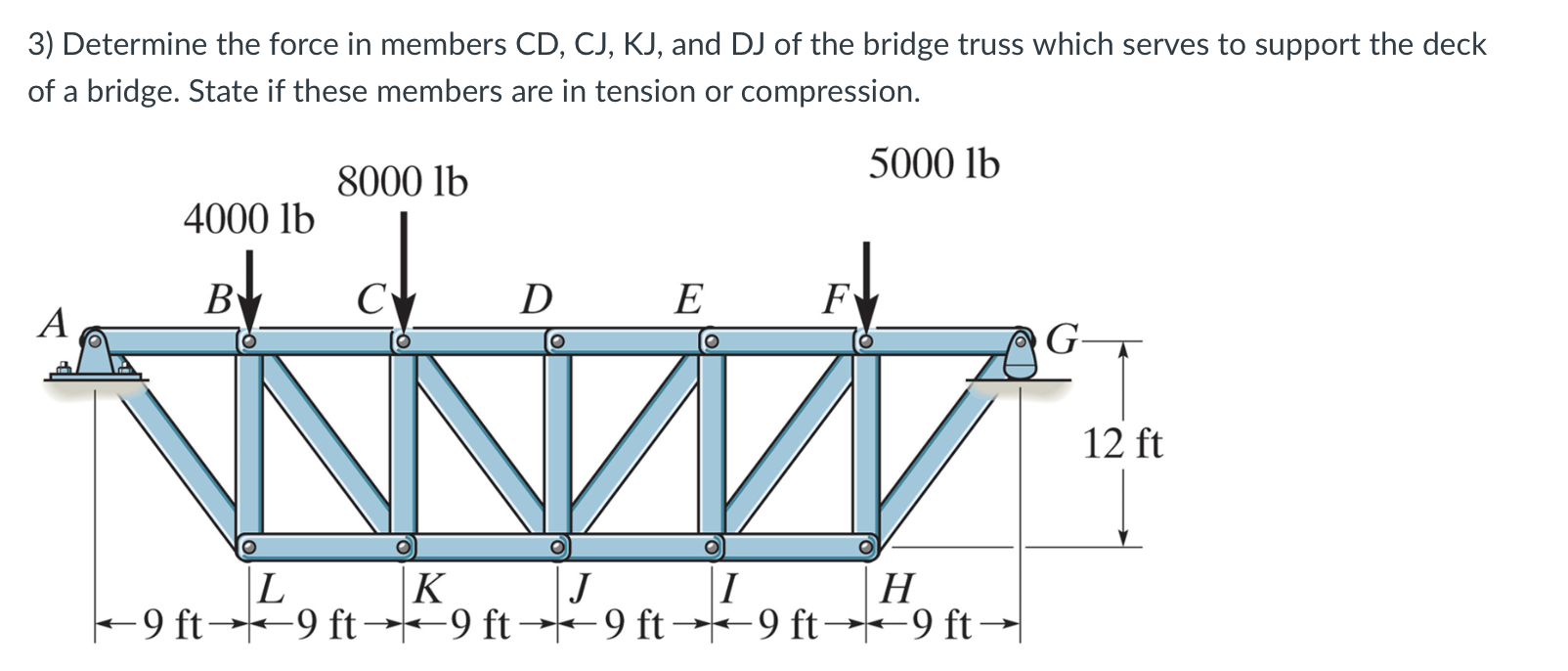

3) Determine the force in members \( C D, C J, K J \), and \( D J \) of the bridge truss which serves to support the deck of a bridge. State if these members are in tension or compression.
3 ) Determine the force in members \ ( C D , C J

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
