Question: 3. Fill the missing boxes in the following project's network diagram repsesented as X(); calculate the slack values and write down the critical activities. (Remember

3. Fill the missing boxes in the following

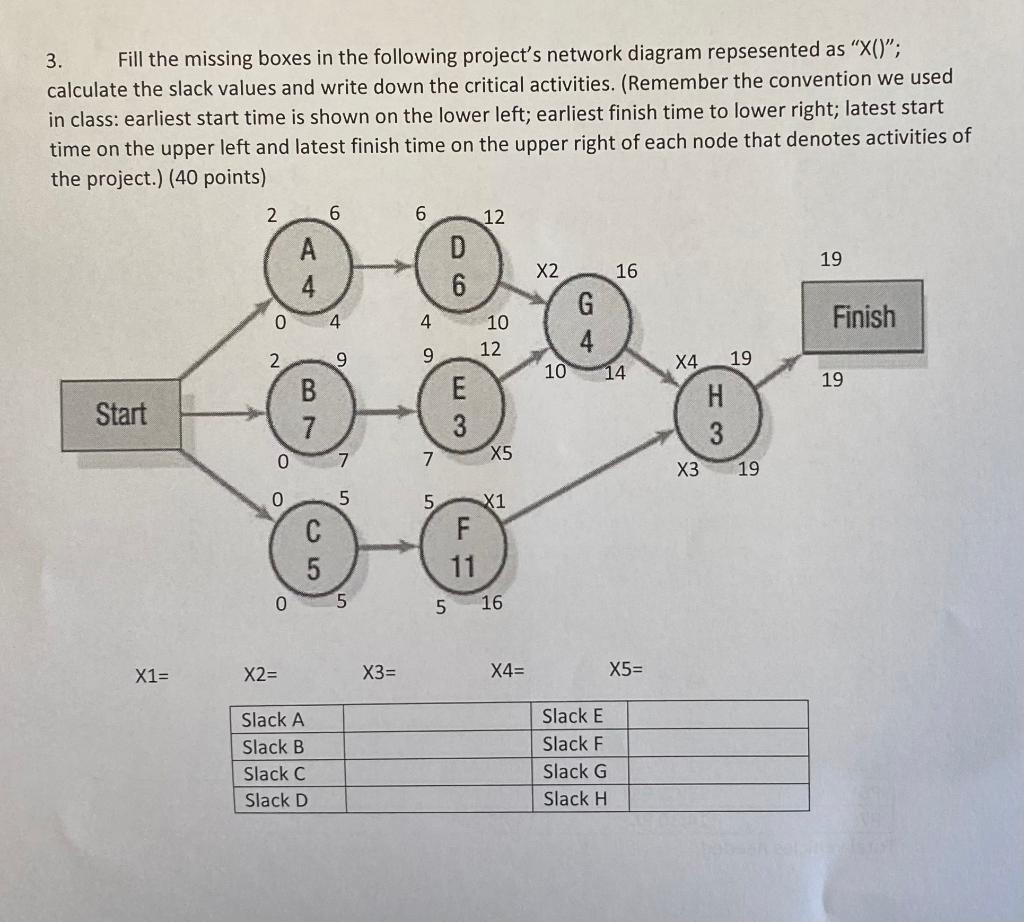

3. Fill the missing boxes in the following project's network diagram repsesented as "X()"; calculate the slack values and write down the critical activities. (Remember the convention we used in class: earliest start time is shown on the lower left; earliest finish time to lower right; latest start time on the upper left and latest finish time on the upper right of each node that denotes activities of the project.) (40 points) 2 6 6 12 19 X2 16 4 Start X1= 0 2 0 0 0 B 7 G5 X2= Slack A Slack B Slack C Slack D 9 7 5 5 X3= 4 9 7 5 LO 06 5 E3 11 10 12 X5 X1 16 X4= 10 14 X5= Slack E Slack F Slack G Slack H X4 H 45 19 X3 19 Finish 19
