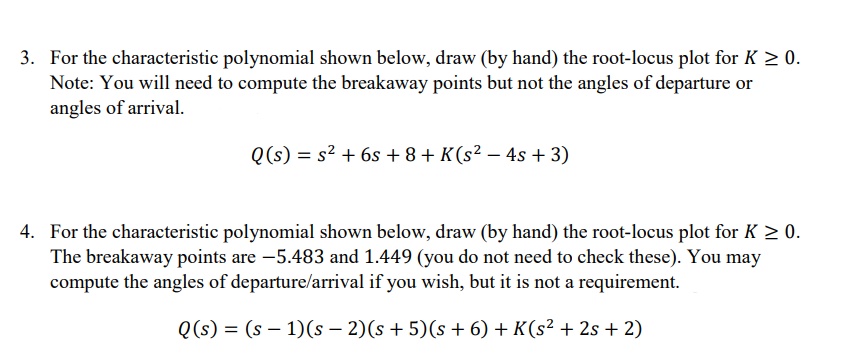

Question: 3. For the characteristic polynomial shown below, draw (by hand) the root-locus plot for K > 0. Note: You will need to compute the

3. For the characteristic polynomial shown below, draw (by hand) the root-locus plot for K > 0. Note: You will need to compute the breakaway points but not the angles of departure or angles of arrival. Q(s) = s + 6s+8+ K(s - 4s + 3) 4. For the characteristic polynomial shown below, draw (by hand) the root-locus plot for K 0. The breakaway points are -5.483 and 1.449 (you do not need to check these). You may compute the angles of departure/arrival if you wish, but it is not a requirement. Q(s) = (s1)(s2)(s + 5)(s + 6) + K(s + 2s + 2)

Step by Step Solution

★★★★★

3.43 Rating (150 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

For the characteristic polynomial Qs s 6s 8 Ks 4s 3 a Identify the openloop transfer function The ch... View full answer
