Question: . 3. For the frame shown in Figure 3: (a) On a sketch of the structure, show the possible reaction components at the supports (b)

.

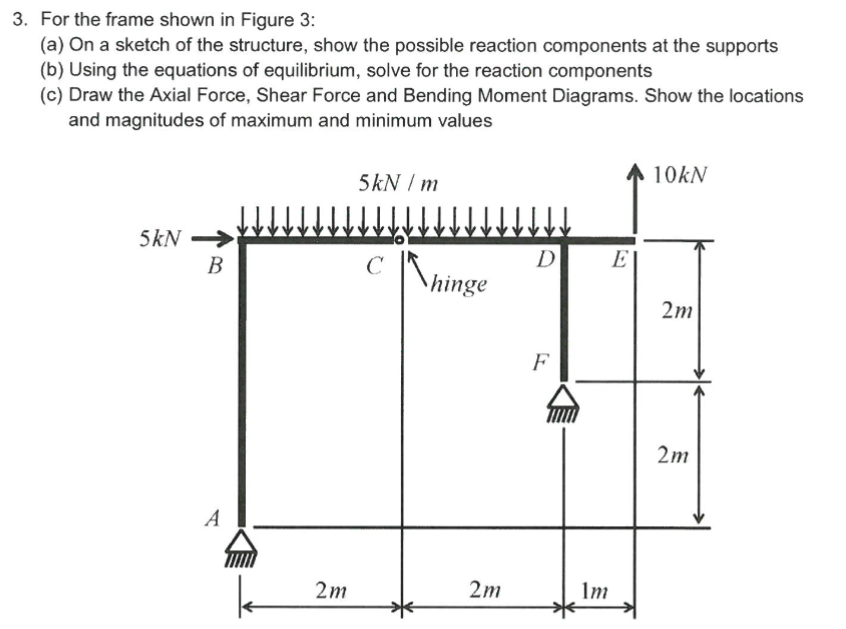

3. For the frame shown in Figure 3: (a) On a sketch of the structure, show the possible reaction components at the supports (b) Using the equations of equilibrium, solve for the reaction components (c) Draw the Axial Force, Shear Force and Bending Moment Diagrams. Show the locations and magnitudes of maximum and minimum values 5kN/m 10kN 5kN B A \hinge D E 2m F 2m 2m Im 2m
