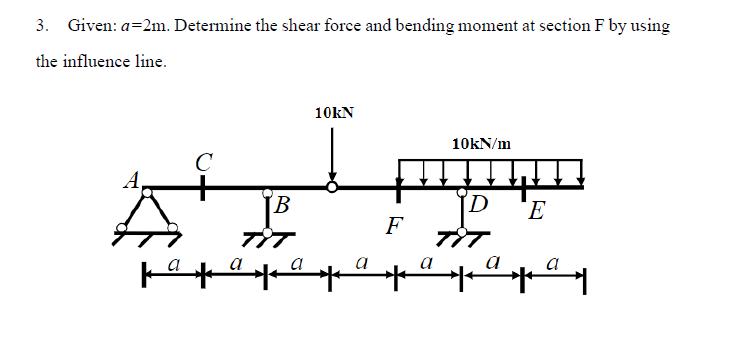

Question: 3 . Given: ( a = 2 m } . Determine the shear force and bending moment at section F by using the influence line.

3. Given: ( a=2 m}. Determine the shear force and bending moment at section F by using the influence line.
3 . Given: ( a = 2 m } . Determine the shear
