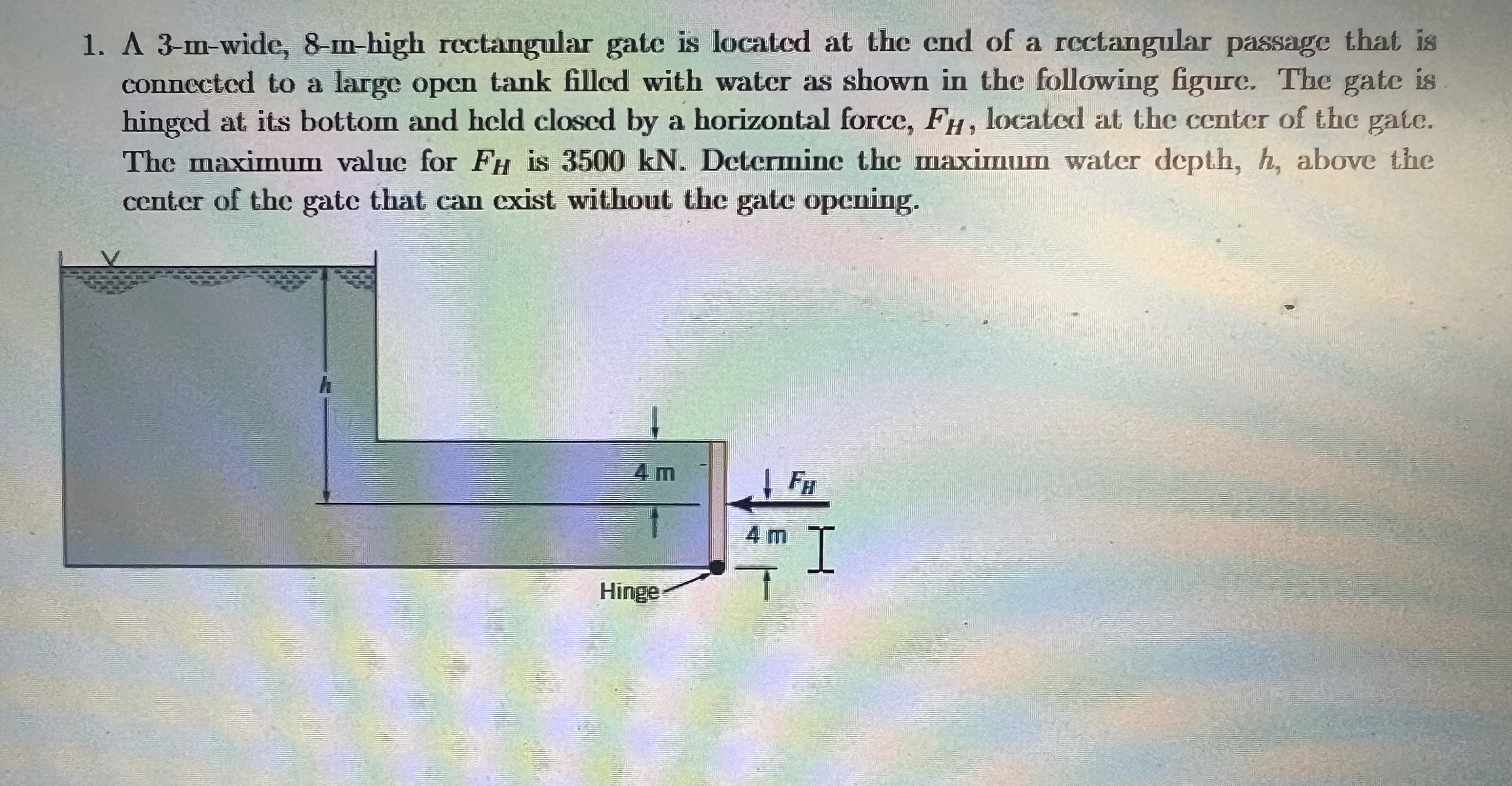

Question: 3 - m - wide, 8 - m - high rectangular gate is located at the end of a rectangular passage that is connected to

3-m-wide, 8-m-high rectangular gate is located at the end of a rectangular passage that is
connected to a large open tank filled with water as shown in the following figure. The gate is
hinged at its bottom and held closed by a horizontal force, FH, located at the center of the gate.
The maximum value for FH is 3500 kN . Determine the maximum water depth, h, above the
center of the gate that can exist without the gate opening.
3 - m - wide, 8 - m - high rectangular gate is

Step by Step Solution
