Question: ( 3 points ) locking _ pliers _ 0 1 Find the forces indicated in the table below when the locking pliers are gripped with

(3 points) locking_pliers_01

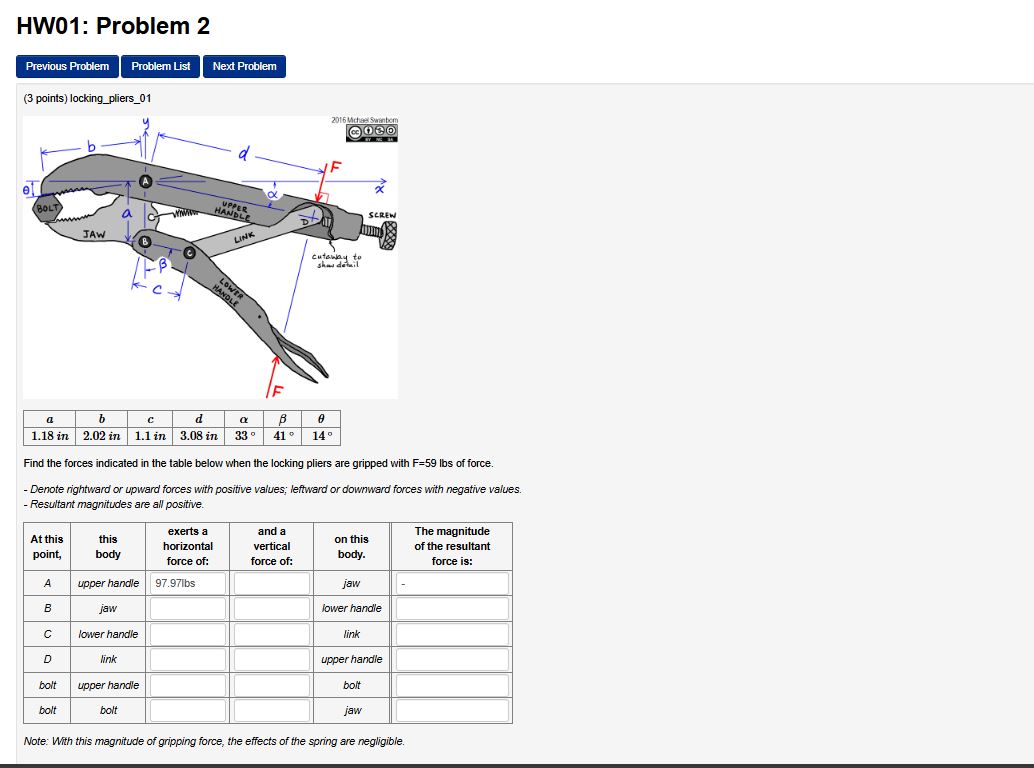

Find the forces indicated in the table below when the locking pliers are gripped with \(\mathrm{F}=59\mathrm{lbs}\) of force.
- Denote rightward or upward forces with positive values; leftward or downward forces with negative values.
- Resultant magnitudes are all positive.
Note: With this magnitude of gripping force, the effects of the spring are negligible.
( 3 points ) locking _ pliers _ 0 1 Find the
