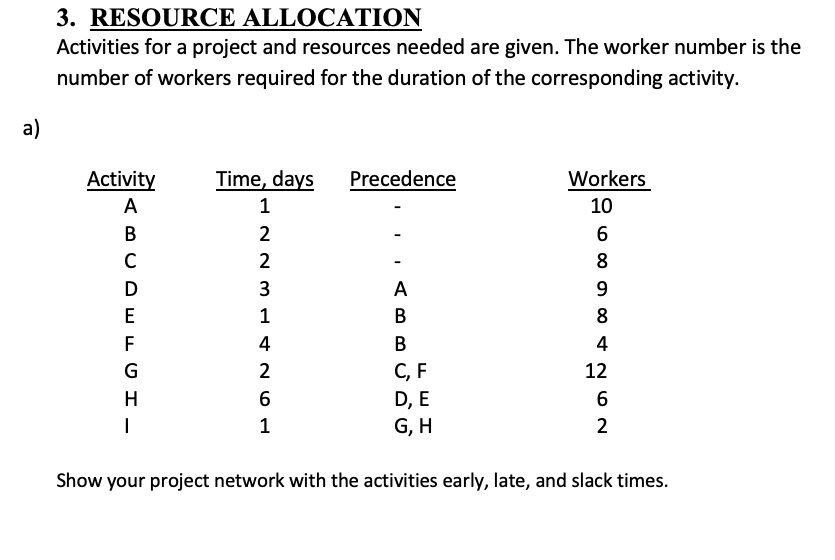

3. RESOURCE ALLOCATION Activities for a project and resources needed are given. The worker number is the number of workers required for the duration of the corresponding activity. Activity Time, days Precedence Workers - IO.nmou) C, F. D, E GH Show your project network with the activities early, late, and slack times. b) Calculate the resource (workers) requirement for the project for an EARLY START. Activity 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Time, days Insert the resource requirements in the appropriate box Resource requirements, # of workers per day 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Time, days c) The workers used in this project are classified differently according to their skill levels and therefore paid at different rates. The number of workers and their pay rates for the first three activities (A, B, C) are shown in the table given below. Resources Skill level Apprentice ($100/day) 10 workers Skill level Basic ($150/dayl Skill level Intermediate $200/day Activity 6 workers 8 workers [The number under each resource heading is the number of workers required for the duration of the corresponding activity.] Prepare a table summarizing the cost for the duration of the activities A, B, C in cash flow terms for each skill level of workers. Resource requirements - $ cost Time (days) Total Cost ($) Skill Level Apprentice Skill Level Basic Skill Level Intermediate
