Question: 3. Simplify the following switching functions and implement using NAND only gates Simplify the following switching expressions (a) f(A, X, Z)-X(X + Z) + A

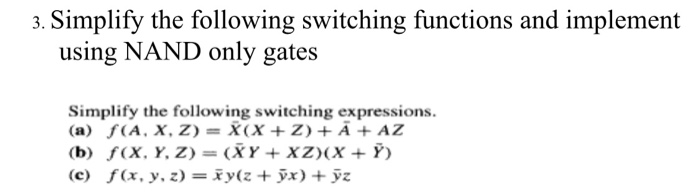

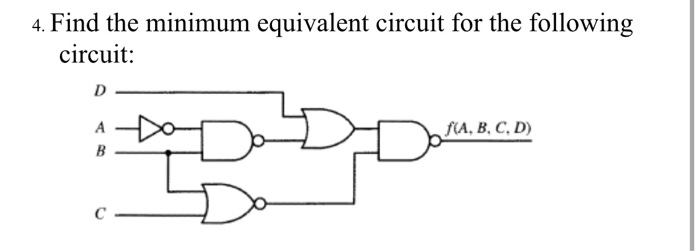

3. Simplify the following switching functions and implement using NAND only gates Simplify the following switching expressions (a) f(A, X, Z)-X(X + Z) + A + AZ 4. Find the minimum equivalent circuit for the following circuit f(A, B, C, D)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

3. Simplify the following switching functions and implement using NAND only gates (a) (b) (c) f(A, X, Z) = x(X + Z) + A + AZ f(X, Y, Z) = (XY + XZ)(X + f(x, y, z) = xy(z + xHFz

Assignment No 1 Due Date: feb 22, 2021 Q. No. 1: Simplify the following Boolean functions to a minimum number of literals: (1) F = xyz + x'x + xyz (1) F=zx + zx x Also implement the simplified...

He asked us to do the circuit diagrams on Digital https://github.com/hneemann/Digital 1) Given the Boolean function F-x- y+2 + x-y+2 + x-y+2 a. List the truth table for the function b. Draw the logic...

Questions 1. Given the Boolean function Let F=2.1.+2.9.2+2-y. a. List the truth table for the function b. Draw the logic diagram using the original Boolean expression. (Use Digital) C. Simplify the...

ANSWER THE FOLLOWING QUESTIONS 2) Draw logic diagram of original and simplified Boolean expressions of Question 1. 3) Implement the Boolean function F given below: abc + dab + dab 1- With AND, OR and...

Simplify the following Boolean functions using 3 - variable K - maps. In each case, also identify all PIs and EPIs. a ) F ( x , y , z ) = ? ? m ( 2 , 3 , 7 ) b ) F ( x , y , z ) = ? ? m ( 0 , 1 , 2 ,...

Q5 (10 Points) Find the complement of the following functions by applying DeMorgan's theorems as many times until it cannot be applied anymore: (b) F2-x(y'z'+ yz) Q6 (10 Points) Express the following...

File Tools View GIU_2456_52_877_2021-02-22T18_19_19 - Word Problem I: Simplify the following Boolean functions to SOP form: a. F(w, x, y, z)=E(0, 1, 2, 5, 8, 10, 13) b. F(A, B, C, D)=II(1, 3, 5, 7,...

You can write your answers on white paper or a tablet, then scan or save them into a single PDF , and submit it through UR Courses. Ensure it's readable. Please note, using software to draw circuits...

CS-194 HW-06 Introduction to Digital Design Take Home You are expected to solve homework problems individually. If needed, you may seek help from your friends. However, do not copy. Show all steps...
