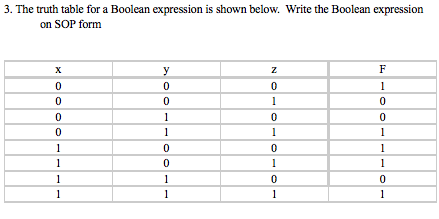

Question: 3. The truth table for a Boolean expression is shown below. Write the Boolean expression on SOP form 0 0 0 0 0 0

3. The truth table for a Boolean expression is shown below.

3. The truth table for a Boolean expression is shown below. Write the Boolean expression on SOP form 0 0 0 0 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

18. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. a) y(xz+xz)+y(xz+xz) b) x(yz+y)+x(y+z) c) x[yz+(y+z)](xy+z) 19. Using...

Q:

3 The truth table for a Boolean expression is shown below equation in SOP form write the Boolean 9

Q:

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-ofproducts form. x y Z F 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0

Q:

The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form X OO 0 0 0 0 1 1 1 1 y 100 0 1 1 0 OO 0 1 1 NO 1 0 1 0 1. 0 1 Description F 1 1 1 0 1 1 0...

Q:

The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form X 0 0 0 0 1 1 1 1 y 0 0 1 1 0 0 1 1 Z 0 1 0 1 0 1 0 1 Description F 1 0 1 0 0 1 1 1

Q:

The truth table for a Boolean expression is shown below. Write the Boolean expression on SOP form Minimize the function using Karnaugh Map (K Map) Draw the SOP form using NOT, AND, OR circuits Draw...

Q:

2. Draw a simple NOT, AND, OR circuit in sum of products (SOP) form that represents the equation above. See 2nd document, Diagram 3. The truth table for a Boolean expression is shown below. Write the...

Q:

2 . Draw a simple NOT, AND, OR circuit in sum of products ( SOP ) form that represents the equation above. 3 . The truth table for a Boolean expression is shown below. Write the Boolean expression on...

Q:

A.) The truth table for a Boolean expression is shown below. Write the Boolean expression on SOP form. B.) Find the truth table that describes the following circuit: F10011101 z010-10-01 y00110011...

Q:

23. The truth table for a Boolean expression is shown below. Write the Boolean expression in sum-of-products form. x y z F 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 0 26. Given...
