Question: 3 . Three forces act on the bracket. Determine the magnitude and direction ( theta ) of ( mathbf {

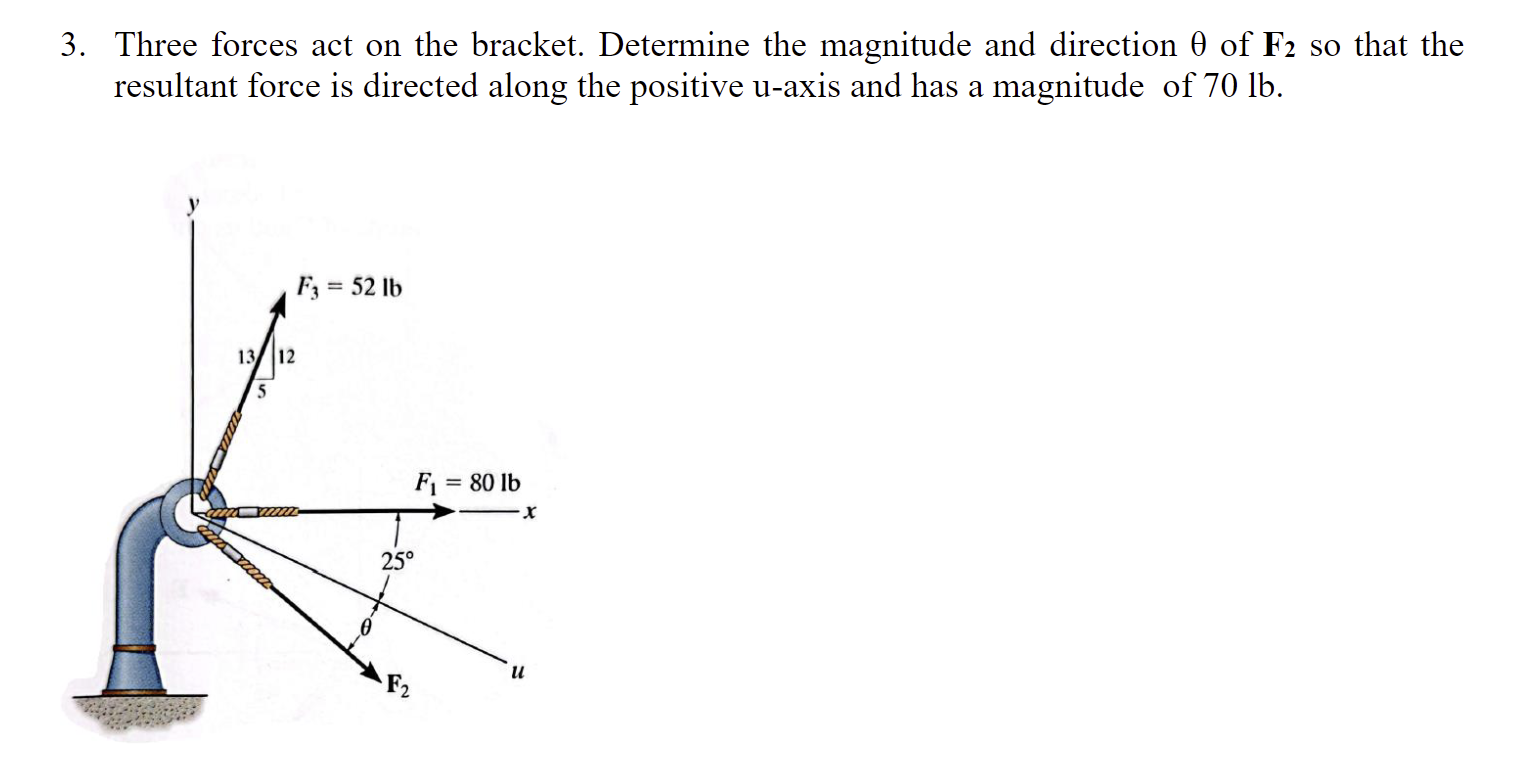

3. Three forces act on the bracket. Determine the magnitude and direction \(\theta \) of \(\mathbf{F}_{2}\) so that the resultant force is directed along the positive u -axis and has a magnitude of 70 lb .
3 . Three forces act on the bracket. Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
