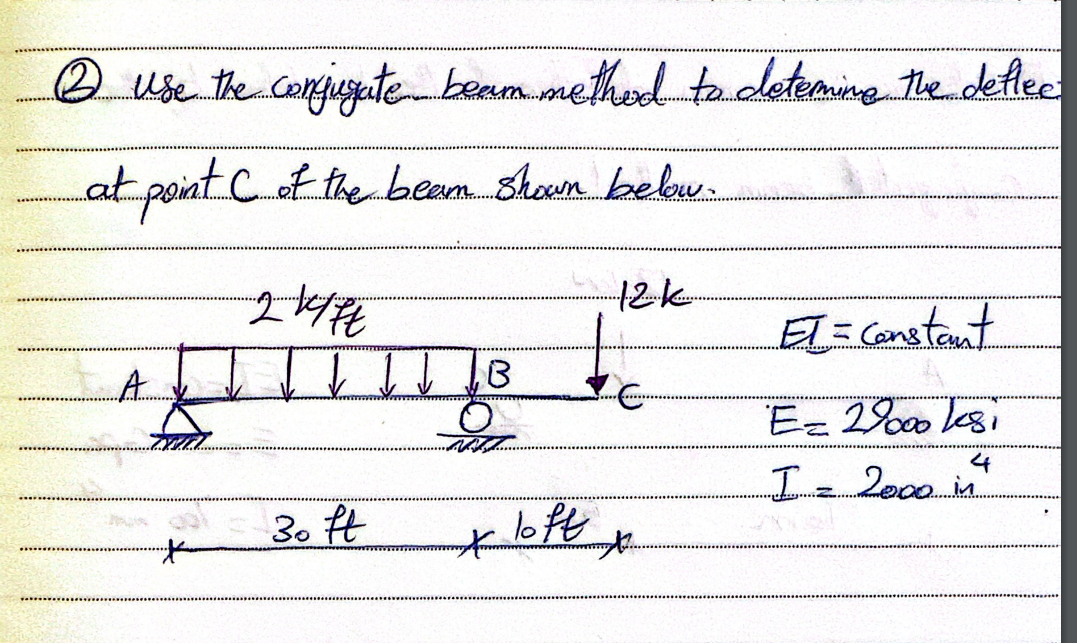

Question: ( 3 ) Use the confuigate beam method to determine the deflec at point C of the beam shown below. E I = constant E

(3) Use the confuigate beam method to determine the deflec
at point C of the beam shown below.
EI= constant
E=29000ksi
I=2000in4
( 3 ) Use the confuigate beam method to determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
