Question: 3 ) We have three 3 - bit up counter chips as shown in the picture with Load and Enable features as well as two

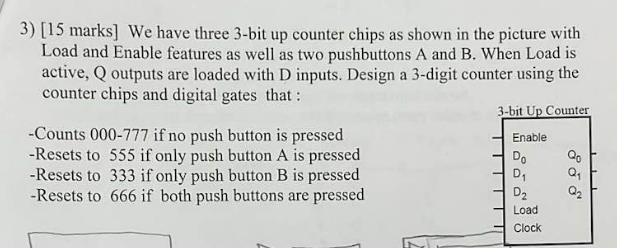

3) We have three 3-bit up counter chips as shown in the picture with Load and Enable features as well as two pushbuttons A and B. When Load is active, Q outputs are loaded with D inputs. Design a 3-digit counter using the counter chips and digital gates that :
-Counts 000-777 if no push button is pressed
-Resets to 555 if only push button A is pressed
-Resets to 333 if only push button \( B \) is pressed
-Resets to 666 if both push buttons are pressed
i need the drawing and explanation
3 ) We have three 3 - bit up counter chips as
