Question: ( 4 0 points ) Three forces are shown below. Assume that the magnitude of each force is 1 0 0 lb . Assume that

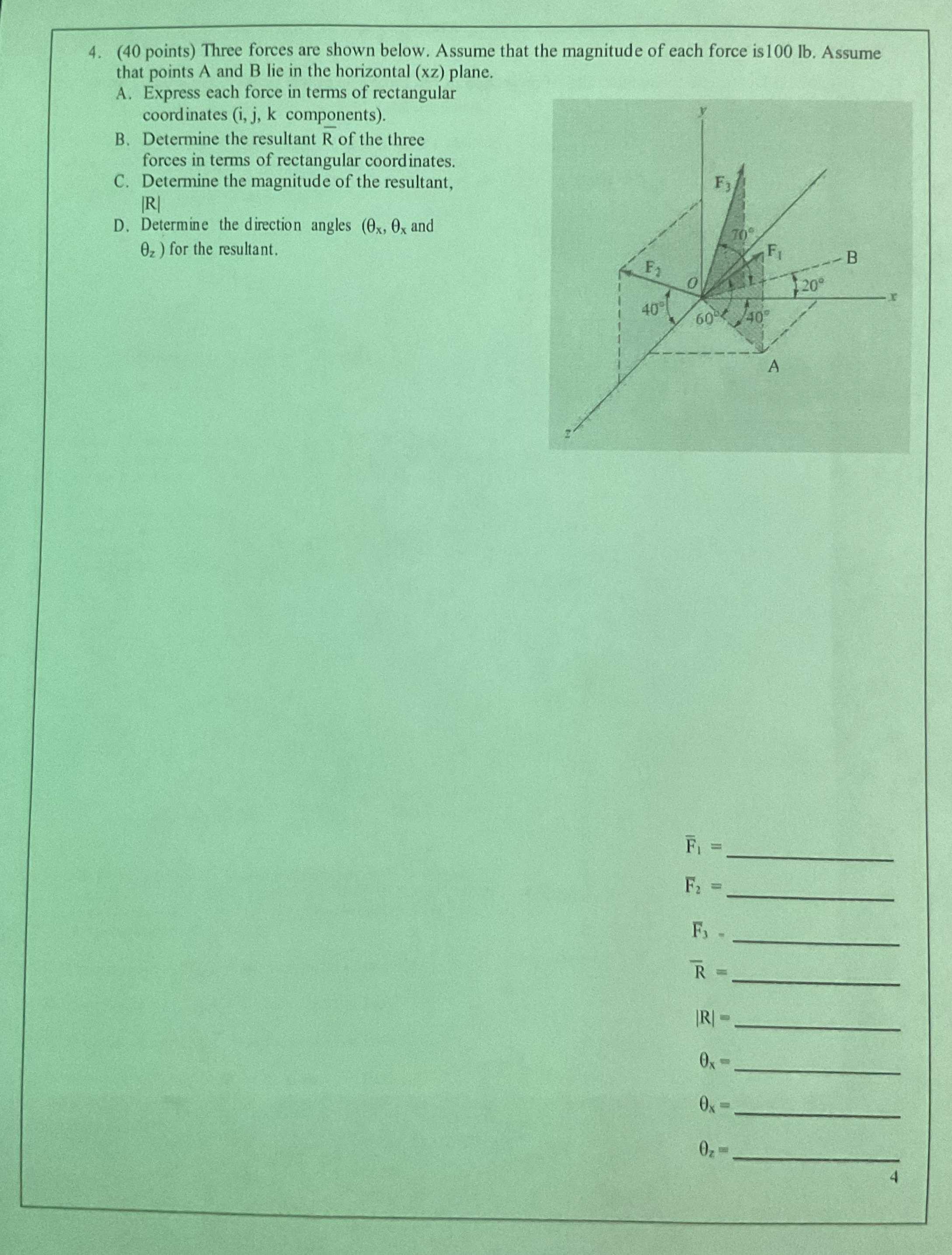

(40 points) Three forces are shown below. Assume that the magnitude of each force is 100 lb . Assume that points A and B lie in the horizontal (xz) plane.
A. Express each force in terms of rectangular coordinates (i,j,k components).
B. Determine the resultant ?bar(R) of the three forces in terms of rectangular coordinates.
C. Determine the magnitude of the resultant, |R|
D. Determine the direction angles and z) for the resultant.
