Question: 4 . [ 1 0 Pts ] Consider a two - stage steam turbine system below. This system in total produces ( 1 0

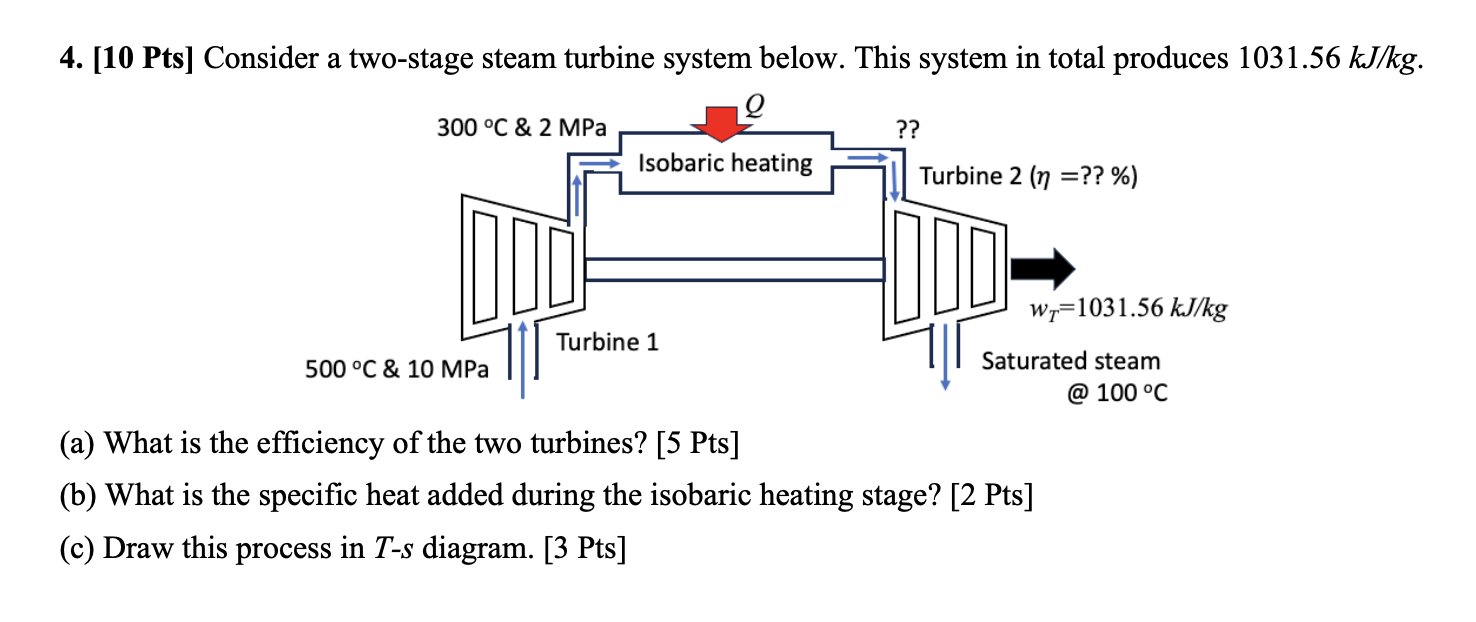

4.[10 Pts] Consider a two-stage steam turbine system below. This system in total produces \(1031.56\mathrm{~kJ}/\mathrm{kg}\).
(a) What is the efficiency of the two turbines? [5 Pts]
(b) What is the specific heat added during the isobaric heating stage? [2 Pts]
(c) Draw this process in T-s diagram. [3 Pts]
4 . [ 1 0 Pts ] Consider a two - stage steam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
