Question: 4 - 1 1 9 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a

4-119.

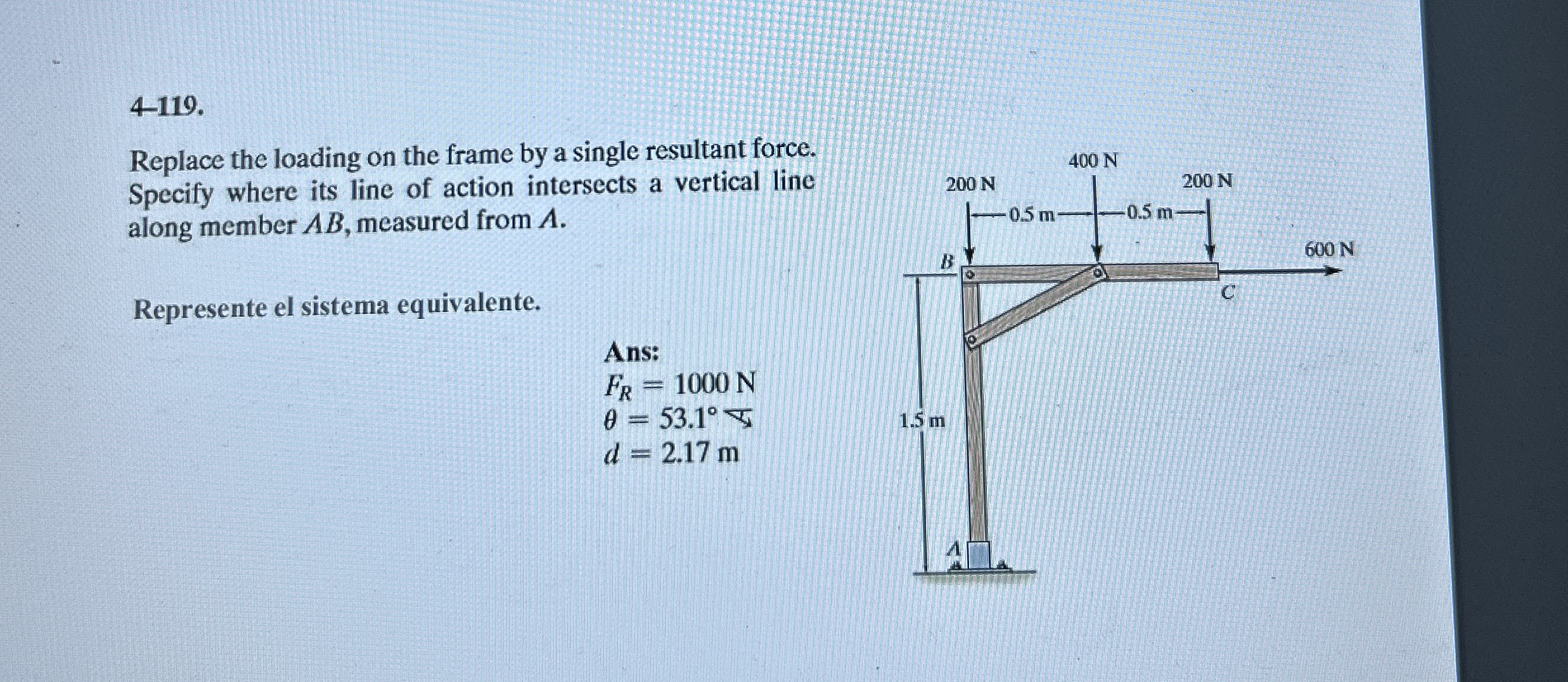

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical line along member AB, measured from A.
Represente el sistema equivalente.
]=1000N[2.17m
4 - 1 1 9 . Replace the loading on the frame by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
