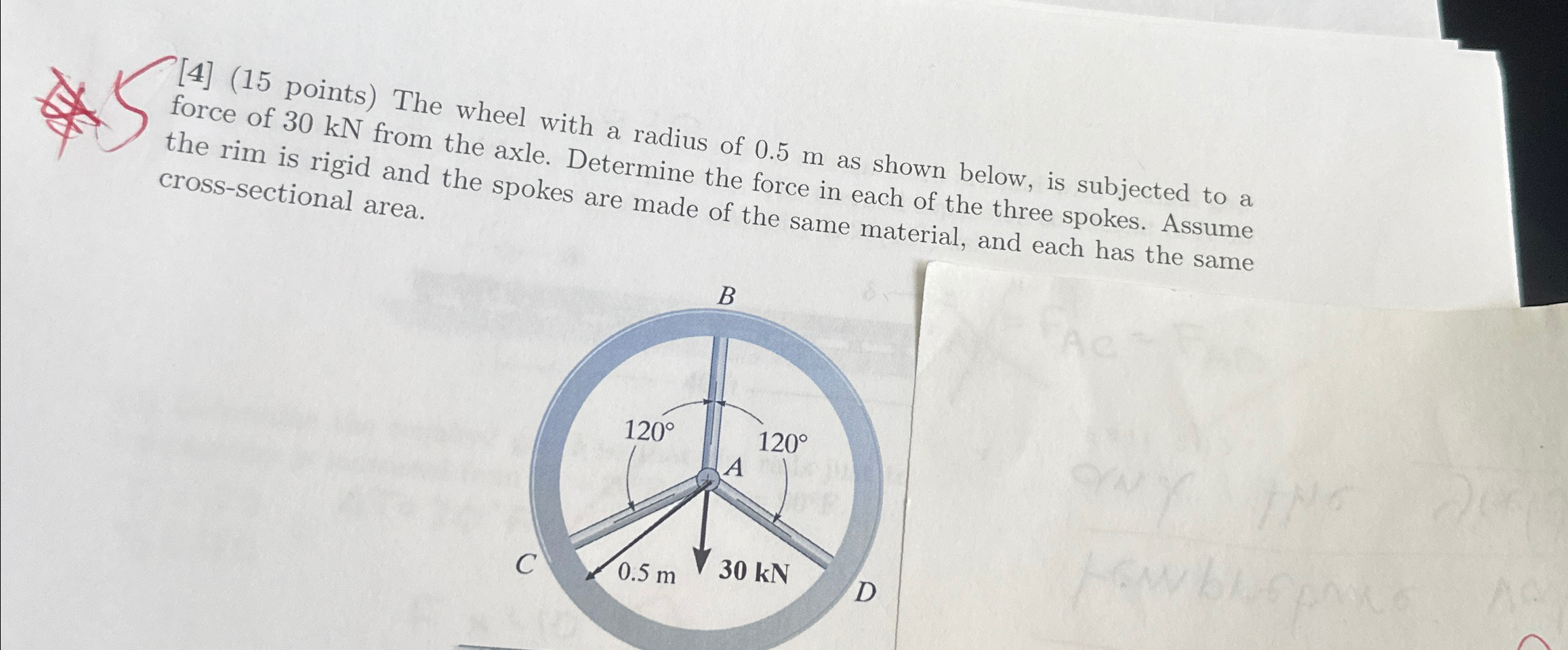

Question: [ 4 ] ( 1 5 points ) The wheel with a radius of 0 . 5 m as shown below, is subjected to a

[4] (15

points

)

The wheel with a radius of

0.5 m

as shown below, is subjected to a force of

30 k N

from the axle. Determine the force in each of the three spokes. Assume the rim is rigid and the spokes are made of the same material, and each has the same cross

-

sectional area.

[ 4 ] ( 1 5 points ) The wheel with a radius of 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
