Question: ( 4 ) ( 1 5 pts Matrix Calculator ) Determine the nodal displacements and member forces for all members. B = 2 0 0

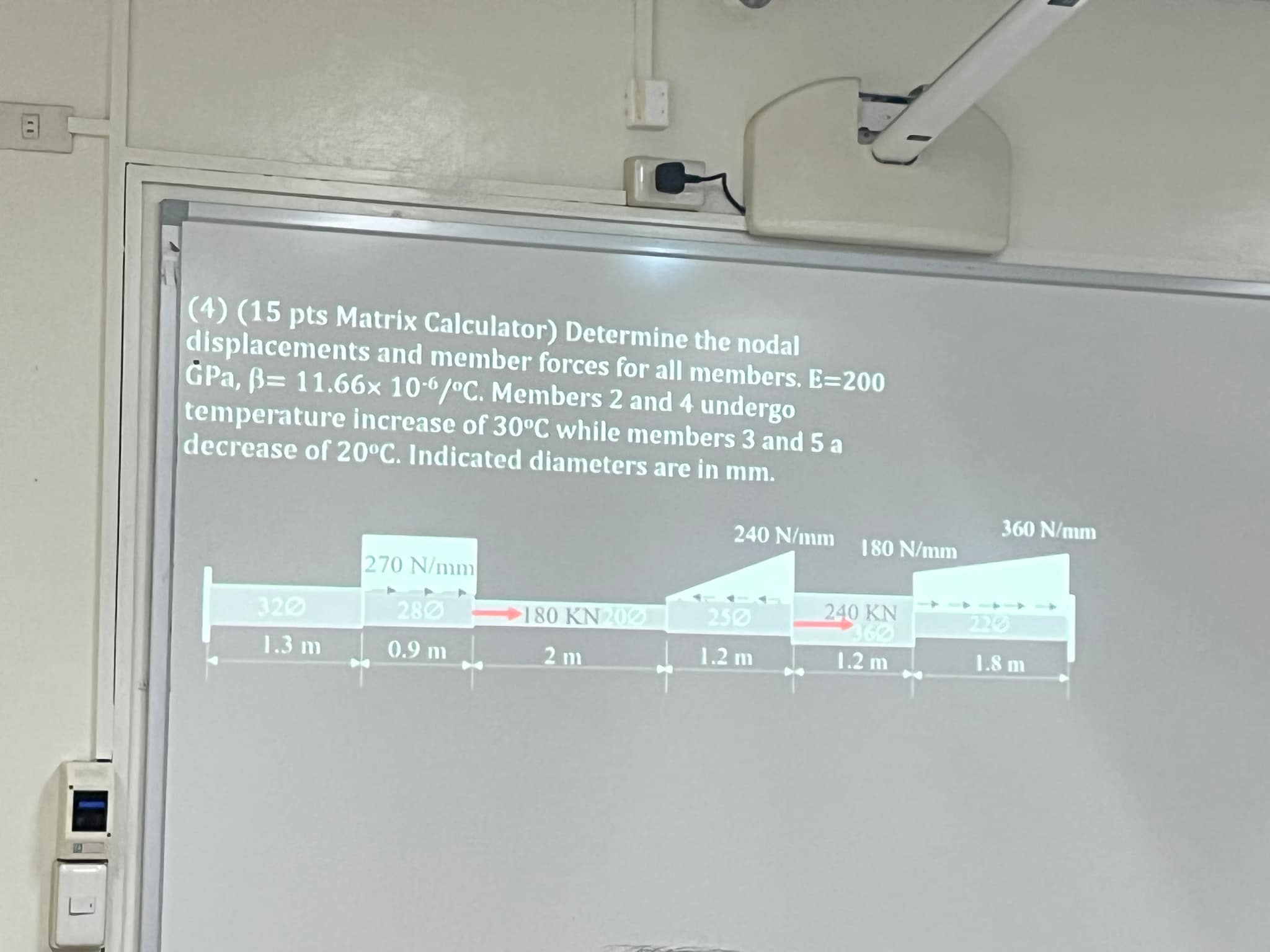

(4)(15 pts Matrix Calculator) Determine the nodal
displacements and member forces for all members. B=200
GPa,=11.6610-6C. Members 2 and 4 undergo
temperature increase of 30C while members 3 and 5 a
decrease of 20C. Indicated diameters are in mm. Solve using Stiffness matrix method
( 4 ) ( 1 5 pts Matrix Calculator ) Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
