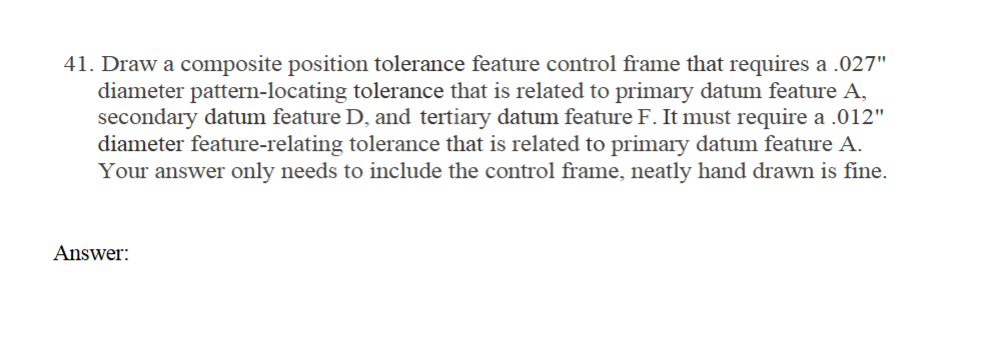

Question: 4 1 . Draw a composite position tolerance feature control frame that requires a . 0 2 7 diameter pattern - locating tolerance that

41. Draw a composite position tolerance feature control frame that requires a .027" diameter pattern-locating tolerance that is related to primary datum feature A, secondary datum feature D , and tertiary datum feature F . It must require a \(.012^{\prime \prime}\) diameter feature-relating tolerance that is related to primary datum feature A . Your answer only needs to include the control frame, neatly hand drawn is fine.
