Question: [ 4 ] ( 2 5 points ) For the truss and loading shown: a ) Identify all zero - force members ( show on

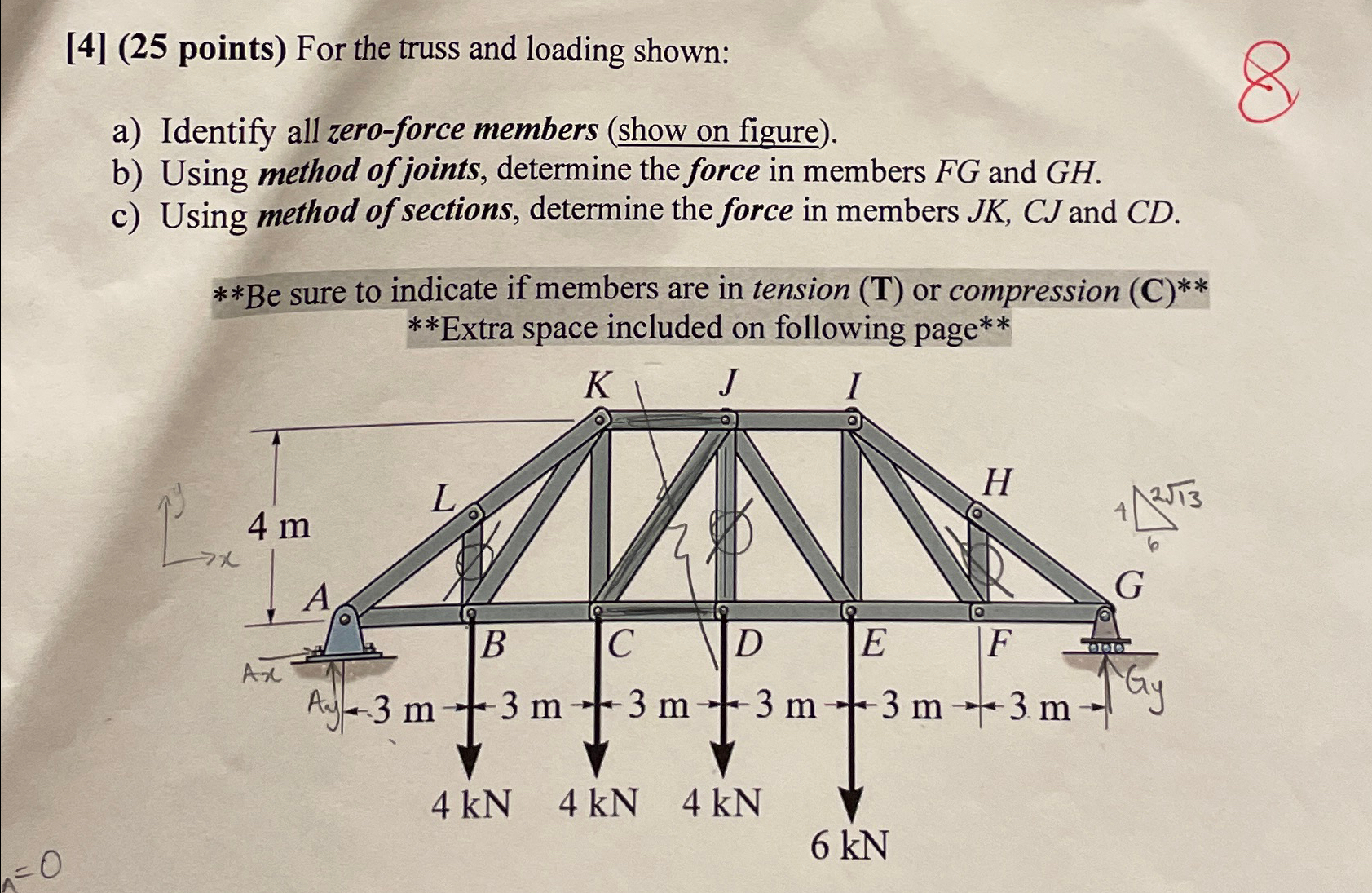

[4](25 points) For the truss and loading shown:
a) Identify all zero-force members (show on figure).
b) Using method of joints, determine the force in members FG and GH.
c) Using method of sections, determine the force in members JK,CJ and CD.
**Be sure to indicate if members are in tension (T) or compression (C)****
