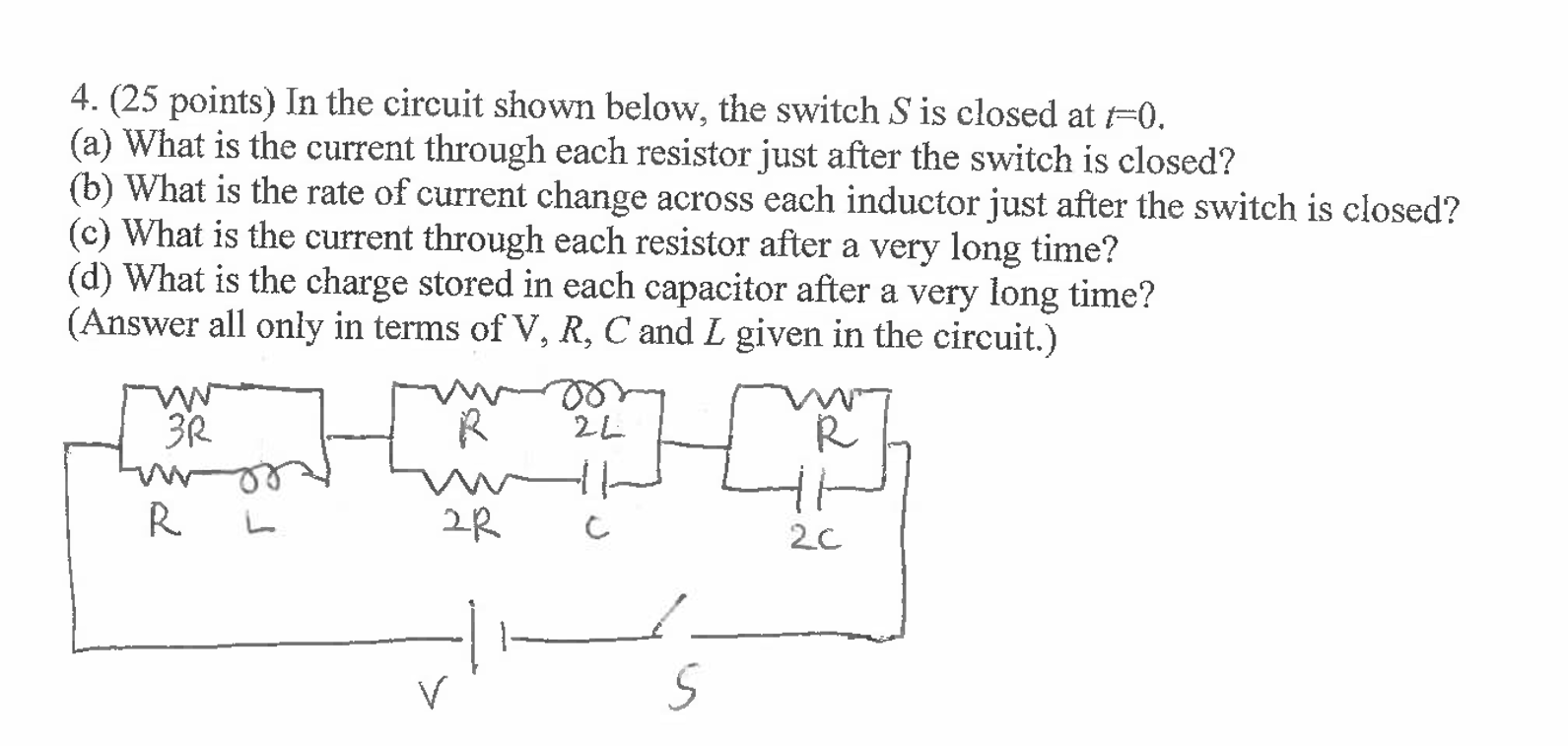

Question: 4 . ( 2 5 points ) In the circuit shown below, the switch ( S ) is closed at ( t
points In the circuit shown below, the switch S is closed at t
a What is the current through each resistor just after the switch is closed?
b What is the rate of current change across each inductor just after the switch is closed?
c What is the current through each resistor after a very long time?
d What is the charge stored in each capacitor after a very long time?
Answer all only in terms of mathrmV R C and L given in the circuit.
