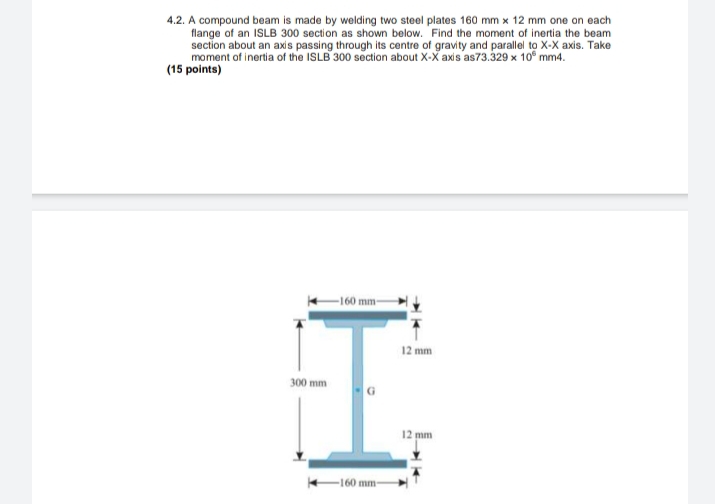

Question: 4 . 2 . A compound beam is made by welding two steel plates 1 6 0 mm times 1 2 mm one on

4.2. A compound beam is made by welding two steel plates 160mm\times 12mm one on each
flange of an ISLB 300 section as shown below. Find the moment of inertia the beam
section about an axis passing through its centre of gravity and parallel to X -X axis. Take
moment of inertia of the ISLB 300 section about x-x axis as 73.329\times 10^(6)mm
Solve what is needed in the problem
4 . 2 . A compound beam is made by welding two

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
