Question: 4 - 2 . Determine the moment about point B of each force acting on the beam. Problems 4 - 1 / 2

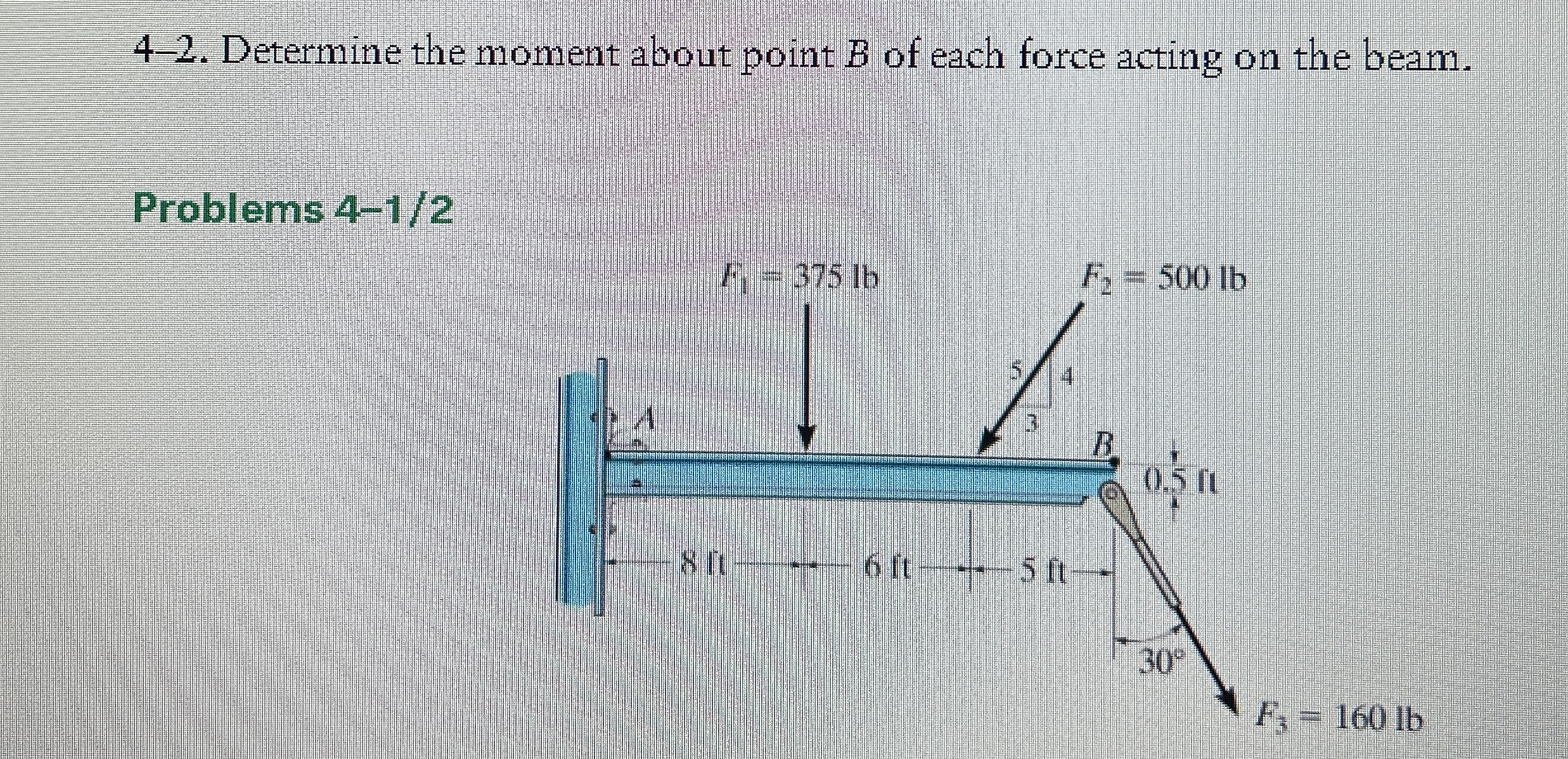

4-2. Determine the moment about point B of each force acting on the beam.
Problems 4-1/2
4 - 2 . Determine the moment about point B of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
