Question: * 4 - 4 . Determine the moment about point A of each of the three forces acting on the beam. 4 - 5 .

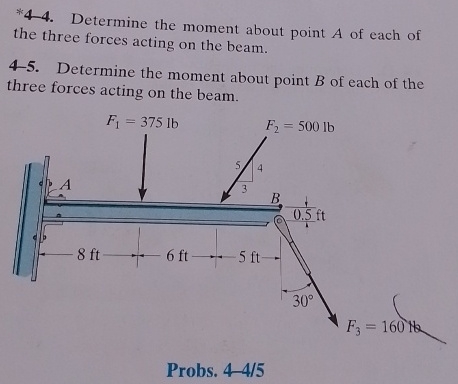

*4-4. Determine the moment about point A of each of
the three forces acting on the beam.
4-5. Determine the moment about point B of each of the
three forces acting on the beam.
Probs. 4-4/5
* 4 - 4 . Determine the moment about point A of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
