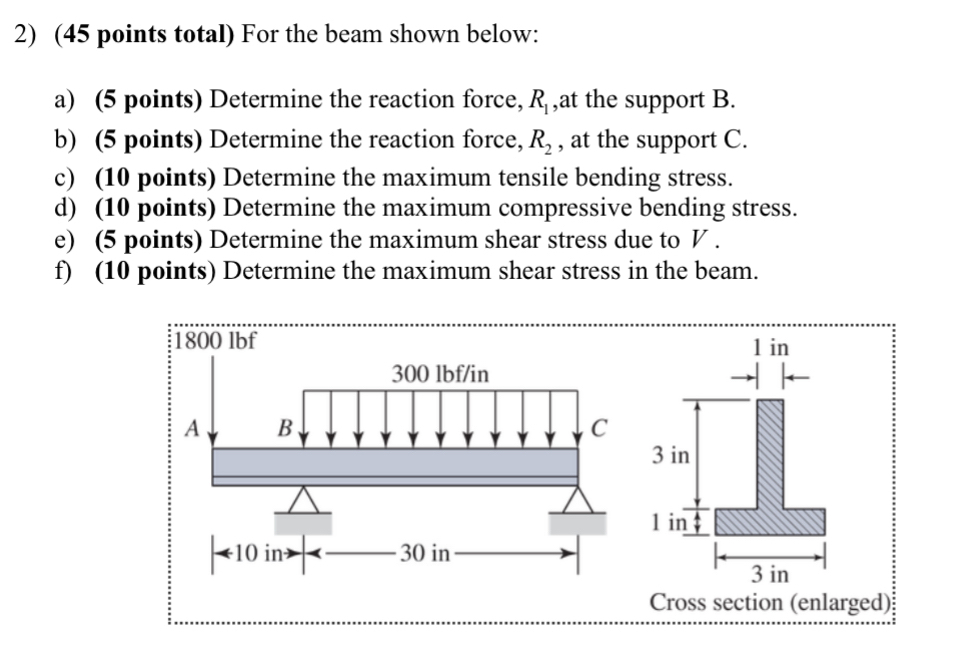

Question: ( 4 5 points total ) For the beam shown below: a ) ( 5 points ) Determine the reaction force, R 1 , at
points total For the beam shown below:
a points Determine the reaction force, at the support B
b points Determine the reaction force, at the support C
c points Determine the maximum tensile bending stress.
d points Determine the maximum compressive bending stress.
e points Determine the maximum shear stress due to
f points Determine the maximum shear stress in the beam.
