Question: 4 - 6 . 1 4 . Two trusses are hinged together at F to form the three - hinged arch shown in fig. P

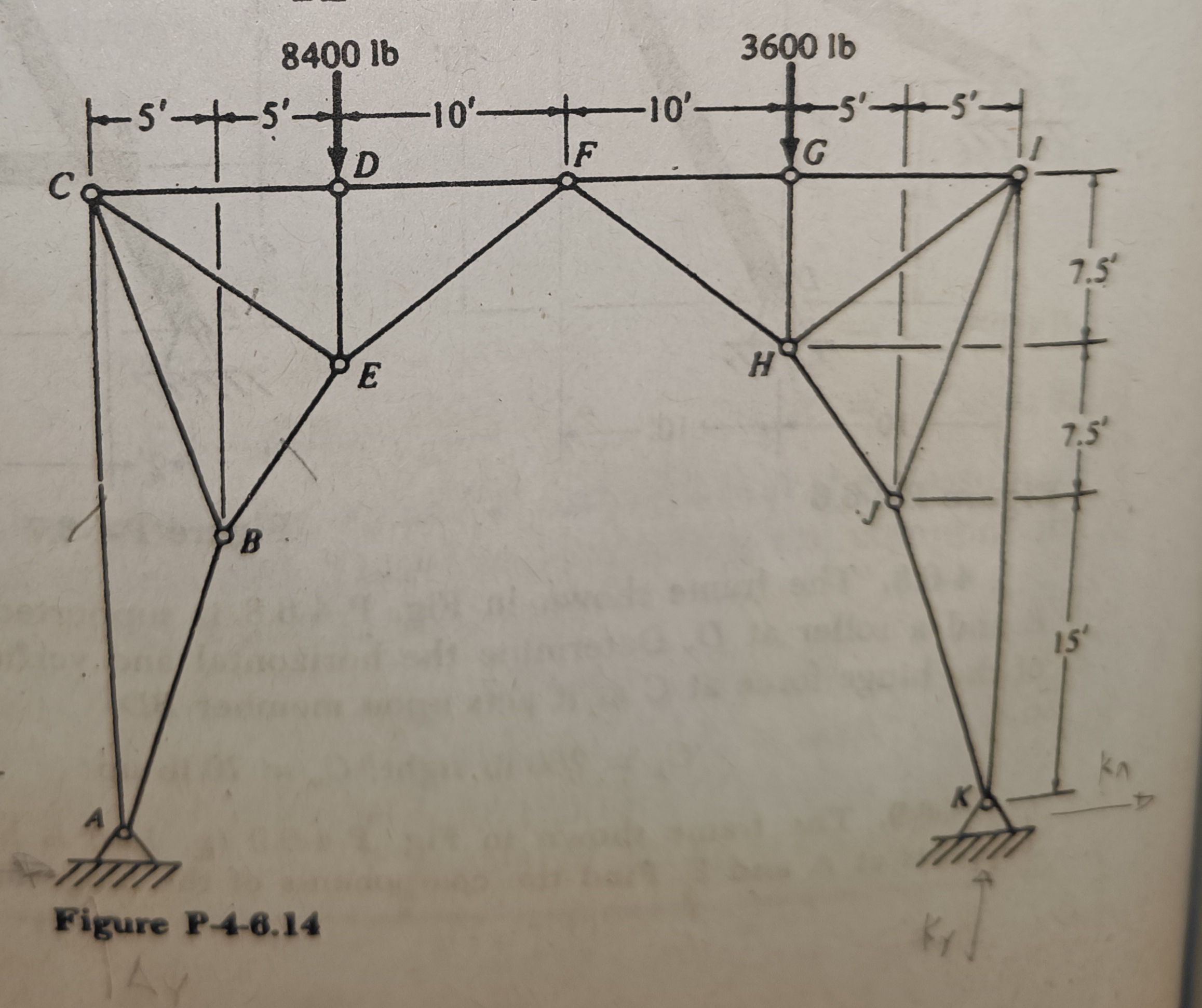

4-6.14. Two trusses are hinged together at F to form the three-hinged arch shown in fig. P-4-6.14. Find the force acting in bars AC, BE, and CE.
4 - 6 . 1 4 . Two trusses are hinged together at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
