Question: 4 7 - 2 4 . Determine the slope at B and the maximum displacement of the beam. Use the moment - area theorems. Take

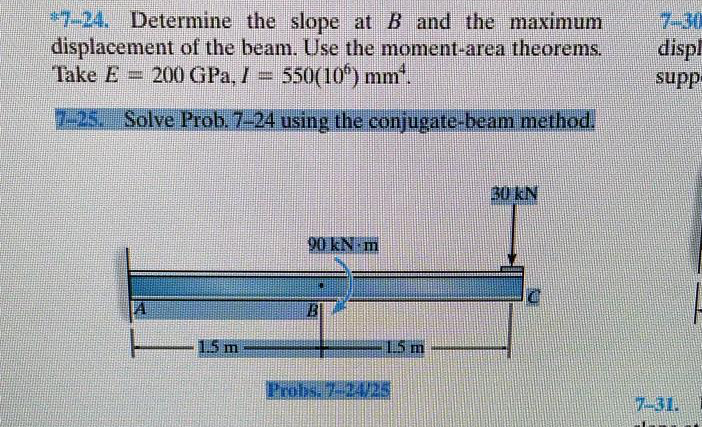

47-24. Determine the slope at B and the maximum displacement of the beam. Use the moment-area theorems. Take E=200GPa,I=550(106)mm4.
7-25. Solve Prob. 7-24 using the conjugate-beam method.
7-31
4 7 - 2 4 . Determine the slope at B and the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the slope at B and the maximum displacement of the beam. Use the moment-area theorems. Take E = 200 GPa, I = 550(10 6 ) mm 4 . Moment Area Theorem. To determine tc/B we apply Theorem 2 by...
