Question: 4 - 9 7 The part shown is formed from a 3 . 1 7 5 mm diameter steel wire, with R = 6 3

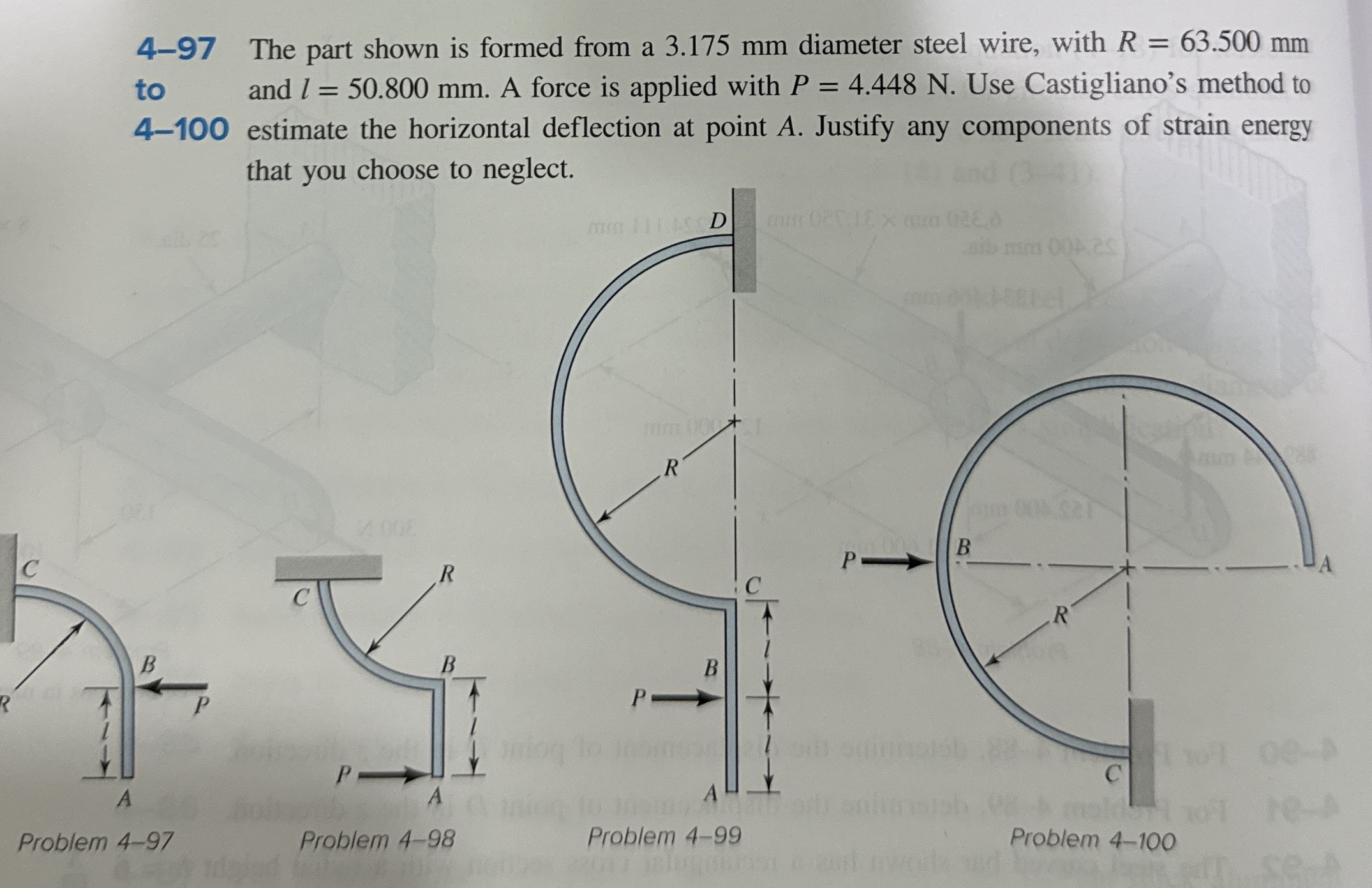

4-97 The part shown is formed from a 3.175 mm diameter steel wire, with R=63.500mm to and l=50.800mm. A force is applied with P=4.448N. Use Castigliano's method to 4-100 estimate the horizontal deflection at point A. Justify any components of strain energy that you choose to neglect.
Please solve 4-99 thanks
4 - 9 7 The part shown is formed from a 3 . 1 7 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
