Question: [ 4 ] A 5 mm thick, 5 0 mm outer diameter, tubular Aluminum shaft, ( E = 1 0 Msi, G = 4 .

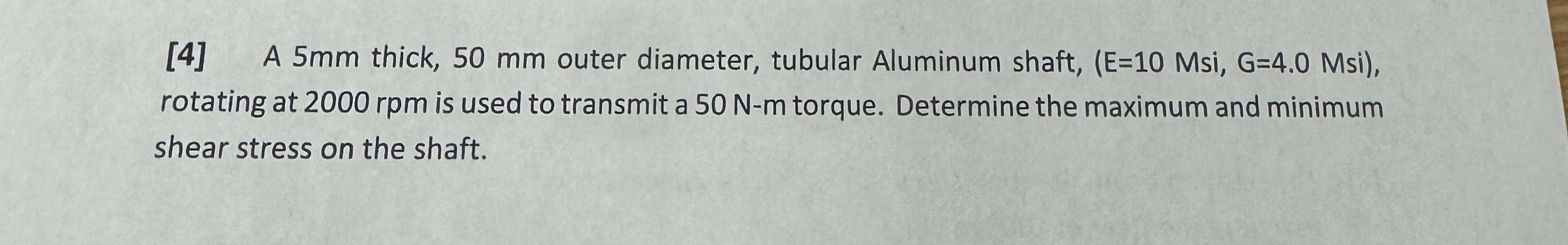

[4] A 5 mm thick, 50 mm outer diameter, tubular Aluminum shaft, (E=10Msi,G=4.0Msi ),
rotating at 2000 rpm is used to transmit a 50N-m torque. Determine the maximum and minimum
shear stress on the shaft.
[ 4 ] A 5 mm thick, 5 0 mm outer diameter,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
