Question: 4) A manometer is attached to a vertical pipe as shown in the figure. Calculate the pressure difference between points A and B. B.

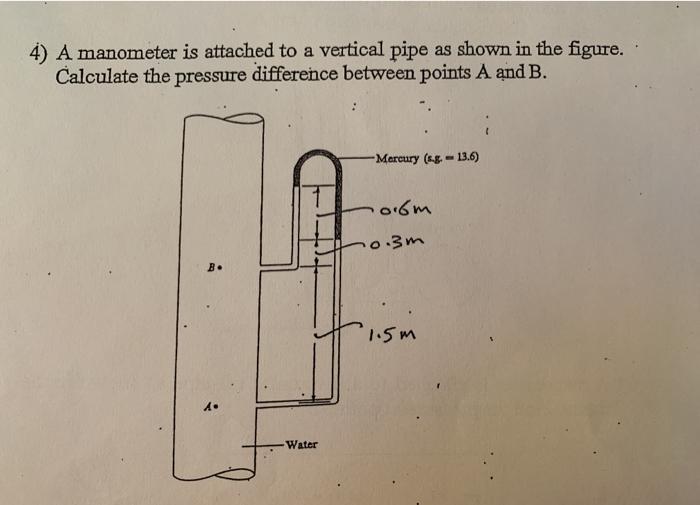

4) A manometer is attached to a vertical pipe as shown in the figure. Calculate the pressure difference between points A and B. B. A -Water Mercury (s.g.- 13.6) 0.6m 0.3m 1.5m

Step by Step Solution

★★★★★

3.38 Rating (164 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Solution T PB 15m h3 water PBPA PB Pwater Chi h mercur... View full answer
