Question: 4 . An exercise machine for the arm can be described as the mechanical system below. a ) Write the second order differential equation describing

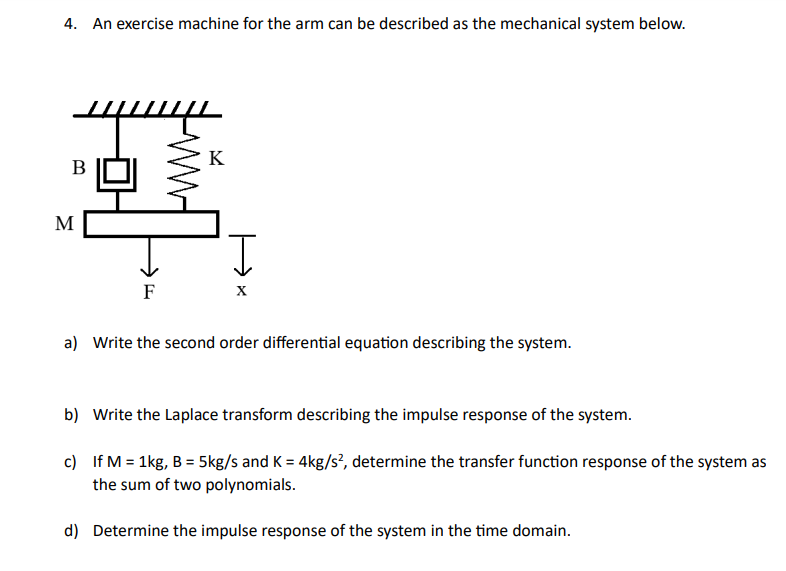

4. An exercise machine for the arm can be described as the mechanical system below.
a) Write the second order differential equation describing the system.
b) Write the Laplace transform describing the impulse response of the system.
c) If \( M=1\mathrm{~kg}, B=5\mathrm{~kg}/\mathrm{s}\) and \( K=4\mathrm{~kg}/\mathrm{s}^{2}\), determine the transfer function response of the system as the sum of two polynomials.
d) Determine the impulse response of the system in the time domain.
4 . An exercise machine for the arm can be
