Question: 4. An incompletely specified function f(A,B,C,D) is given in the Karnaugh map below. (16 pts) a) Find all possible prime implicants (minimal products) of f.

4. An incompletely specified function f(A,B,C,D) is given in the Karnaugh

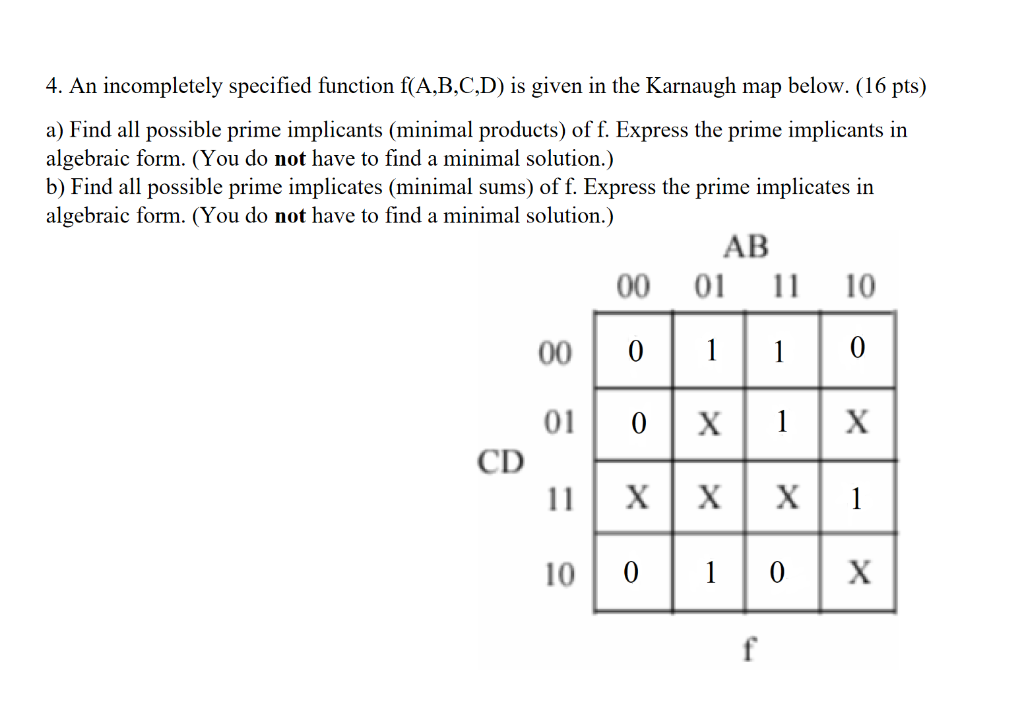

4. An incompletely specified function f(A,B,C,D) is given in the Karnaugh map below. (16 pts) a) Find all possible prime implicants (minimal products) of f. Express the prime implicants in algebraic form. (You do not have to find a minimal solution.) b) Find all possible prime implicates (minimal sums) of f. Express the prime implicates in algebraic form. (You do not have to find a minimal solution.) AB 00 01 11 10 X CD 00 0110 01 0 x 1 x XXX1 10 0 0 1 0 X 11 f
