Question: 4. 15.0 kg and m = 9.0 kg. Ignore In the Atwood machine shown, if M = 4) friction and the mass of the pulley.

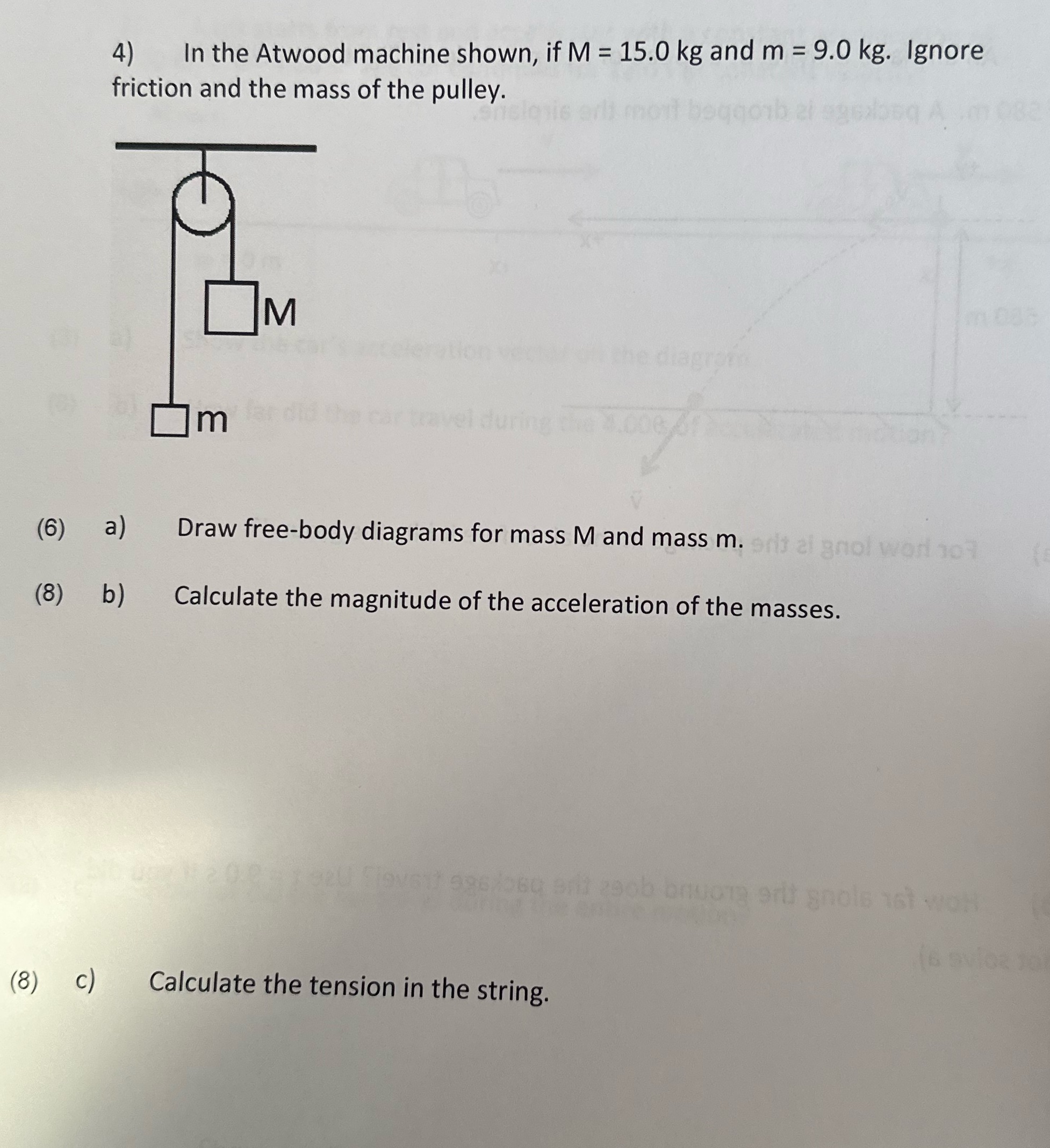

15.0 kg and m = 9.0 kg. Ignore In the Atwood machine shown, if M = 4) friction and the mass of the pulley. m (6) (8) (8) a) b) c) Draw free-body diagrams for mass M and mass m. Calculate the magnitude of the acceleration of the masses. Calculate the tension in the string.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!
