Question: 4 . For the network below a . Determine the energy stored by each capacitor at steady - state conditions b . Repeat the same

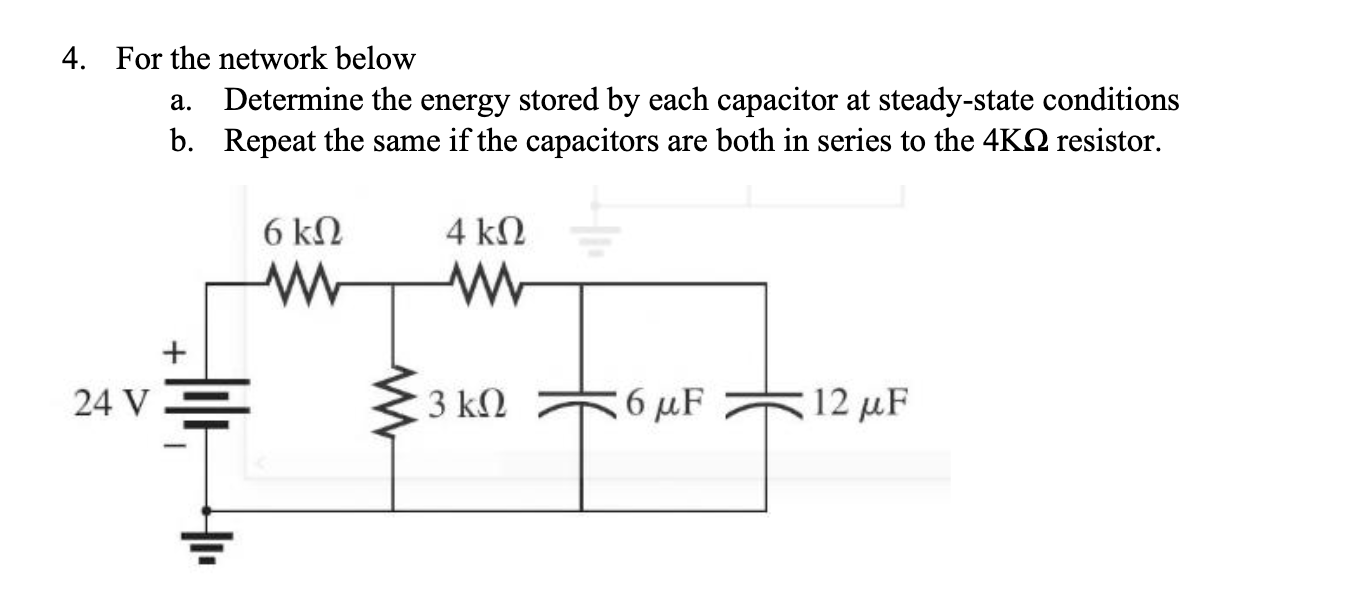

4. For the network below
a. Determine the energy stored by each capacitor at steady-state conditions
b. Repeat the same if the capacitors are both in series to the \(4\mathrm{~K}\Omega \) resistor.
4 . For the network below a . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
