Question: 4 ) Given: A 1 : 1 6 scale model of a watercraft will be tested in a water tank. The full - size prototype

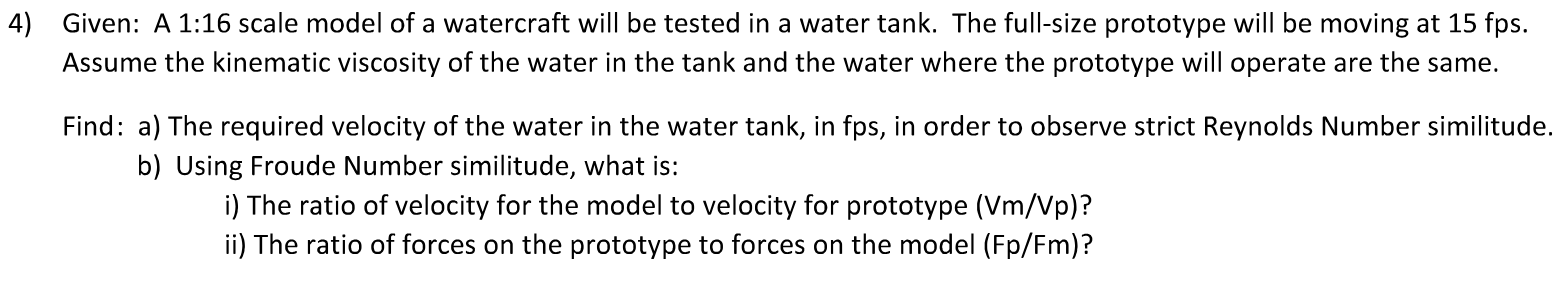

4) Given: A 1:16 scale model of a watercraft will be tested in a water tank. The full-size prototype will be moving at 15 fps. Assume the kinematic viscosity of the water in the tank and the water where the prototype will operate are the same.
Find: a) The required velocity of the water in the water tank, in fps, in order to observe strict Reynolds Number similitude.
b) Using Froude Number similitude, what is:
i) The ratio of velocity for the model to velocity for prototype (\(\mathrm{Vm}/\mathrm{Vp})\)?
ii) The ratio of forces on the prototype to forces on the model (\(\mathrm{Fp}/\mathrm{Fm})\)?
4 ) Given: A 1 : 1 6 scale model of a watercraft
