Question: 4- In order to apply the Spanning Tree Algorithm (STA) to the network shown below answer the following questions a) Which of the bridges is

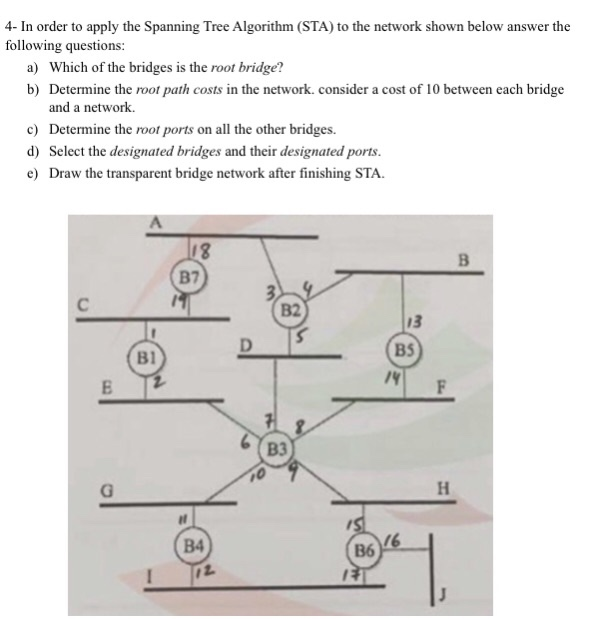

4- In order to apply the Spanning Tree Algorithm (STA) to the network shown below answer the following questions a) Which of the bridges is the root bridge? b) Determine the root path costs in the network. consider a cost of 10 between each bridge and a network. c) Determine the root ports on all the other bridges. d) Select the designated bridges and their designated ports. e) Draw the transparent bridge network after finishing STA B7 B2 B5 Bi /4 B3 B4 16 B6 1 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
